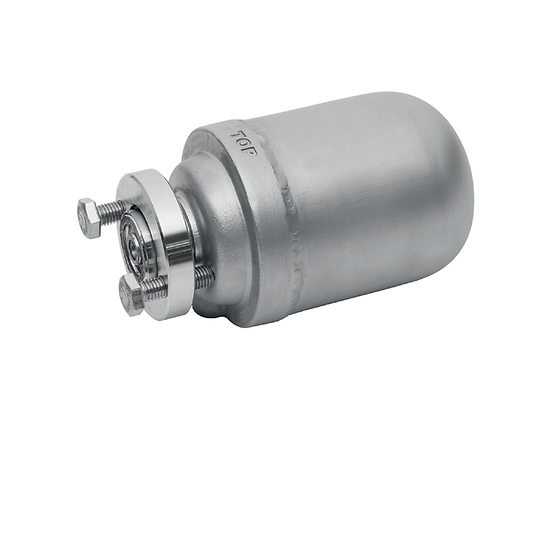

Yarway Universal Steam Traps

The Yarway Universal Steam Traps are engineered to provide highly efficient condensate drainage and steam system protection across a wide range of industrial and process applications. Built with versatility, reliability, and ease of maintenance in mind, these traps are designed for universal installation, making them suitable for both new systems and retrofits. Utilizing state-of-the-art design and premium materials, Yarway steam traps efficiently discharge condensate while preventing live steam loss, thus optimizing energy use and maximizing system performance. Their compact and modular configuration allows for quick installation and replacement without requiring system downtime. Available in multiple trap styles—including thermostatic, thermodynamic, and mechanical options—they deliver robust performance under varying pressure, flow, and temperature conditions. These steam traps are optimized for high thermal cycling and pressure fluctuation environments. Their rugged construction offers excellent resistance to corrosion, erosion, and water hammer effects. Yarway Universal Steam Traps are commonly used in steam systems serving heat exchangers, process equipment, tracing lines, and utility services across industries such as oil and gas, petrochemical, refining, power generation, and manufacturing. Designed to reduce maintenance costs and downtime, the universal connector system facilitates rapid trap replacement, enabling users to switch trap types to match evolving system requirements without pipe modifications. Integrated strainer and blowdown options further enhance reliability and trap longevity.

Technical Specification of Yarway Universal Steam Traps

• Type: Thermodynamic disc (one moving part)
• Models: 721 (½–¾”), 731 (¾–1″), 741 (¾–1″), 751 (1″), 761 (1¼–2″) – all universal mount
• Pressure Range: Vacuum to 650 psig (45 barg)
• Temperature Range: Up to 800 °F (427 °C)
• Body Material: Forged chrome-moly steel ASTM A182 F22 (standard); 304/316 SST versions available
• Connections: Threaded NPT/BSP, socket weld, butt weld, flanged (on request)
• PMO (Max Operating Pressure): 650 psig @ 750 °F (Model 721/731/741)
• Capacity: Up to 12,000 lb/hr (5400 kg/hr) cold water at 600 psi differential
• Integral Features: Y-strainer (40 mesh), blowdown valve, non-return function
• Freeze Protection: Fully functional when installed vertically downward (no water retention)
• Certifications: ASME Section VIII, PED 2014/68/EU, CRN

Feature of Yarway Universal Steam Traps

• Universal mount design for quick installation and replacement.

• Energy-efficient condensate discharge with minimal steam loss.

• Available in multiple trap technologies (thermodynamic, thermostatic, mechanical).

• Durable construction resistant to corrosion, high pressure, and temperature variations.

• Integrated strainer and blowdown options to protect system components.

• Suitable for high cycling and demanding process environments.

• Reduced maintenance costs and system downtime.
