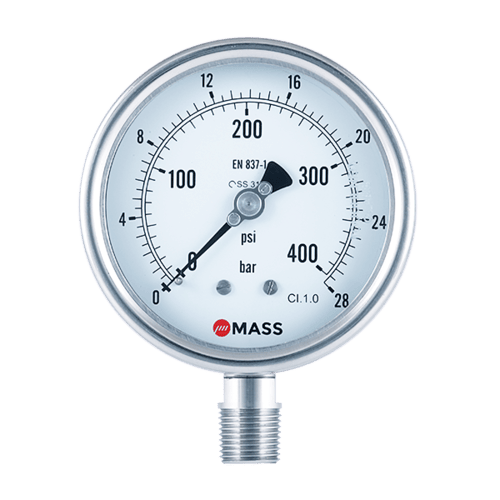

WPS Open Front Process Pressure Gauge

WPS Open Front Process Pressure Gauge:

The WPS Process Pressure Gauge is a high-precision industrial pressure gauge designed for demanding applications in the chemical, petrochemical, power, and manufacturing sectors. Available in multiple sizes and pressure ranges, it features rugged construction, optional electrical contacts, and excellent overload protection. Built with corrosion-resistant materials like SS316, SS316L, Monel, and Ni Span, this gauge ensures durability and reliable performance even in aggressive environments.

Key Features of WPS Open Front Process Pressure Gauge:

• Available Sizes: 63mm, 100mm, 115mm, 150mm, 250mm

• Accuracy:

  • Standard: ±1%

  • Optional: ±0.5% (150mm and 250mm sizes)

• Pressure Range: Vacuum to 36,000 psi / Vacuum to 2500 bar

• Materials:

  • Case and wetted parts: SS316, SS316L, Monel, or Ni Span

• Design Options:

  • Dry or liquid-filled

  • Socket and case fully welded

  • External zero adjustments

  • Overload protection up to 130%

  • Optional electrical contacts

  • Optional oxygen cleaning

• Compliance Standards:

  • ASME B40.100

  • EN 837-1

  • IS-3624

    Applications

    • Chemical and petrochemical industries

    • Refineries

    • Fertilizer plants

    • Thermal and nuclear power plants

    • Machinery and construction equipment

    • OEM and process control systems
