Wafer Ball Valve

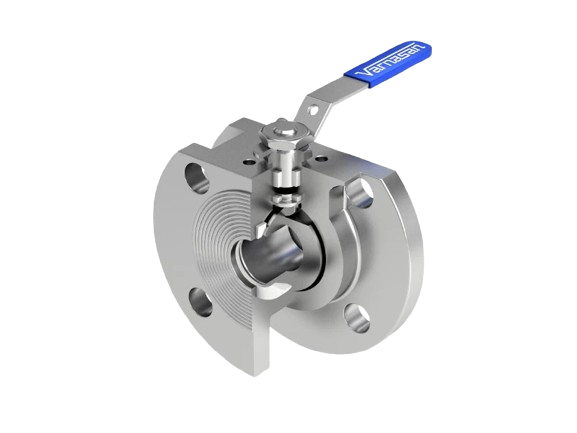

The Varnasan Wafer Ball Valve is a compact, high-performance stainless steel valve designed for efficient on/off flow control in industrial piping systems. Its wafer-type body allows installation between standard flanges, reducing space requirements while maintaining strong sealing performance.

Manufactured from AISI 304 stainless steel, this valve offers excellent resistance to corrosion, making it suitable for use with chemicals, acids, bases, pharmaceutical fluids, food-grade materials, and various industrial media. The valve operates reliably under a PN16 pressure rating and supports a wide temperature range from –30 °C to +180 °C, ensuring durability in demanding operating conditions.

Certified to international quality and safety standards, the Varnasan Wafer Ball Valve delivers long service life, low maintenance requirements, and dependable performance across multiple industries.

Features

• Compact wafer design for space-saving installation

• High corrosion resistance stainless steel body

• Reliable tight shut-off performance

• Wide temperature and pressure capability

• Suitable for aggressive and corrosive media

• Low maintenance and long service life

• Actuator mounting compatible with electric or pneumatic actuators

• Manufactured to international quality and safety standards

Technical Specifications

• Product Type: Wafer Ball Valve

• Body Material: AISI 304 Stainless Steel

• Pressure Rating: PN16

• Operating Temperature Range: –30 °C to +180 °C

• Valve Type: Two-way ball valve

• Connection Type: Wafer (installed between flanges)

• Sealing Material: PTFE

• Operation: Manual (actuator-ready design)

• Certification: CE, Fire Safe, ATEX, ISO 9001:2015, SIL 3

• Application Media: Chemicals, acids, bases, pharmaceutical and industrial fluids
