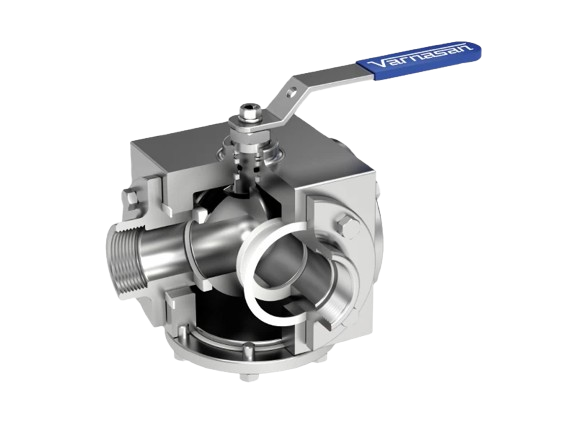

Threaded T Type 3 Way Stainless Steel Ball Valve

The Threaded T-Type 3-Way Stainless Steel Ball Valve is a high-performance industrial valve designed for precise fluid flow control across multiple pipeline directions. Featuring a T-port configuration, this valve allows for flow diversion, mixing, or distribution between three ports, making it ideal for complex piping systems.

Manufactured from premium AISI 304 or AISI 316 stainless steel, the valve offers excellent resistance to corrosion, chemical attack, and high temperatures. It is engineered for reliability in demanding applications such as chemical processing, food and beverage production, pharmaceuticals, plastics manufacturing, and other industrial fluid handling systems.

With a robust threaded connection for easy installation and maintenance, this 3-way ball valve supports medium to high pressure operations while maintaining tight shut-off and long service life.

Features

• T-Port 3-Way Design for flexible flow direction, mixing, or diversion

• Stainless Steel Construction ensures corrosion and chemical resistance

• High Pressure Capability suitable for industrial systems

• Wide Temperature Range for hot and cold process media

• Threaded Connections allow quick and secure installation

• Tight Shut-Off Performance minimizes leakage

• Actuator Ready Design supports automation upgrades

• Long Service Life with minimal maintenance requirements

Technical Specifications

• Valve Type: 3-Way Ball Valve (T-Port)

• Connection Type: Threaded (Female Thread)

• Body Material: Stainless Steel AISI 304 / AISI 316

• Pressure Rating: PN16 / PN40

• Operating Temperature Range: -30°C to +180°C

• Number of Ports: 3

• Flow Configuration: T-Port

• Seat Material: PTFE

• Operation: Manual (lever operated)

• Actuator Compatibility: Pneumatic or electric actuator ready

• Applicable Media: Water, oil, gas, chemicals, acids, food-grade fluids

• Certifications: CE, ISO 9001, Fire Safe, ATEX, SIL 3
