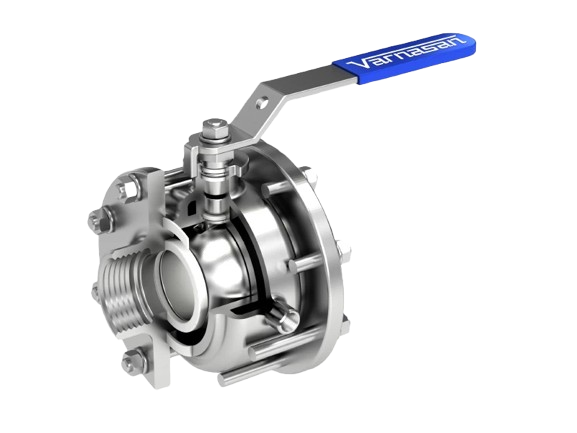

Threaded Jacketed Stainless Steel Ball Valve
Threaded jacketed stainless steel ball valve designed for temperature-controlled industrial fluid systems with high corrosion resistance and reliable shut-off.
The Threaded Jacketed Stainless Steel Ball Valve is a high-performance industrial valve designed for precise on/off flow control in demanding applications. Manufactured from corrosion-resistant AISI 304 or AISI 316 stainless steel, this valve is built to withstand harsh environments, aggressive chemicals, and high operating pressures.
Its jacketed body design allows heating or cooling media to circulate around the valve, maintaining fluid temperature and preventing solidification or viscosity changes during operation. With a quarter-turn ball mechanism, the valve ensures fast response, tight shut-off, and minimal pressure loss. Suitable for use in chemical processing, pharmaceuticals, food and beverage, plastics, and industrial fluid handling systems, this valve delivers durability, safety, and long-term reliability.
Features
-
Jacketed design for precise temperature control
-
High corrosion resistance with stainless steel construction
-
Threaded ends for easy installation and maintenance
-
Smooth quarter-turn operation for quick flow control
-
Suitable for high-pressure and high-temperature applications
-
Reliable sealing with low leakage risk
-
Long service life with minimal maintenance
-
Certified for industrial safety and performance standards
Technical Specifications
-
Valve Type: Ball Valve (Jacketed)
-
Connection Type: Threaded (BSP / NPT)
-
Body Material: AISI 304 / AISI 316 Stainless Steel
-
Pressure Rating: PN16 / PN40
-
Temperature Range: -30°C to +180°C
-
Operation: Quarter-turn manual operation
-
Sealing: Tight shut-off ball mechanism
-
Jacket Function: Heating or cooling media circulation
-
Standards & Certifications: CE, ATEX, Fire Safe, ISO 9001:2015, SIL3
-
Typical Applications: Chemical, pharmaceutical, food processing, plastics, industrial fluids
