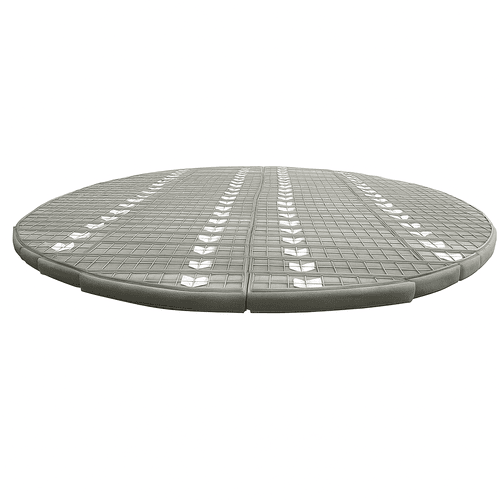

Stainless Steel Wire Mesh Demister Pad

 Stainless Steel Wire Mesh Demister Pad

Stainless Steel Wire Mesh Demister Pad is a highly efficient mist elimination solution designed to separate liquid droplets from gas streams. Engineered with precision and made from high-grade stainless steel, it ensures long-lasting performance, superior durability, and excellent corrosion resistance. The demister pad, also known as a wire mesh mist eliminator, provides an optimal balance between efficiency and minimal pressure drop, making it an ideal choice for various industrial separation processes.

Constructed using premium stainless steel grades such as SS304/304L, 316/316L, 904L, 321, and 310, Valor demister pads are capable of withstanding extreme temperatures up to 150°C, while maintaining structural integrity and efficiency. The mesh design offers a large surface area, high void ratio, and low pressure loss, which ensures maximum gas-liquid separation efficiency.

Each unit is customizable with pad diameters from 500 mm to 6000 mm, wire diameters between 0.15 mm and 0.29 mm, and thicknesses from 100 mm to 400 mm. With an operational accuracy of 3–5 microns and a density range of 120–190 kg/m³, Valor’s demister pads deliver reliable performance even in demanding environments.

Designed for easy installation, maintenance, and transport, these demister pads are compact, lightweight, and suitable for both new installations and system retrofits. Their excellent corrosion and rust resistance ensure a long service life, even when exposed to harsh chemicals and high-moisture environments.

Key Features

• Simple structure, small volume, and lightweight design.

• High defoaming and separation efficiency due to large contact surface area.

• Minimal pressure drop for smooth gas flow.

• Excellent corrosion and rust resistance for long-term use.

• Wide range of materials and sizes to suit diverse industrial needs.

• Easy to install, operate, and maintain.

• Customizable specifications available upon request.

Applications

Valor stainless steel demister pads are widely used in:

• Chemical and pharmaceutical industries

• Petroleum refining and gas processing

• Food and beverage production

• Paper and pulp manufacturing

• Power generation and machinery industries

• Shipbuilding and aerospace sectors

• Environmental protection and pollution control systems
