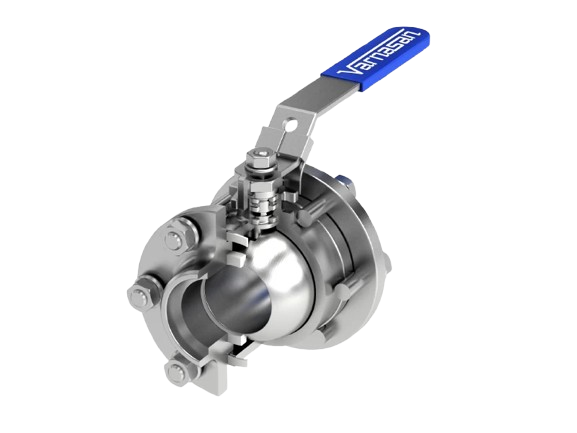

Stainless Steel Ball Valve with Socket

The Socket Weld Stainless Steel Ball Valve is a high-performance valve designed for reliable flow control in demanding industrial applications. Made from premium stainless steel (AISI 304 or AISI 316), it provides excellent corrosion resistance, durability, and long service life in systems handling corrosive fluids such as acids, bases, chemicals, and plastic processing media.

It supports operating pressures up to PN16 and PN40, and a wide temperature range from ‑30 °C to +180 °C, making it suitable for versatile process environments. Certified to rigorous quality standards such as CE0042, TS EN 10204 3.1, ATEX, ADR, Fire Safe, ISO 9001:2015, and SIL3, this valve ensures safety, performance, and compliance for critical installations.

Features (list)

• Premium stainless steel construction for corrosion and wear resistance

• Socket weld ends provide strong, leak-free permanent installation

• Wide temperature range suitable for extreme conditions

• High pressure capability with PN16/PN40 ratings

• Multiple quality & safety certifications for industrial reliability

• Versatile application across chemical, food, pharmaceutical, and plastics industries

• Suitable for corrosive and aggressive media

• Manual or actuator-ready operation

Technical Specifications (list)

• Product Type: Socket weld ball valve

• Body Material: AISI 304 or AISI 316 stainless steel

• Connection Type: Socket weld ends

• Pressure Rating: PN16, PN40

• Operating Temperature: ‑30 °C to +180 °C

• Certifications: CE0042, TS EN 10204 3.1, ATEX, ADR, Fire Safe, ISO 9001:2015, SIL3

• Applications: Corrosive fluids, chemical processing, food, pharmaceutical, plastics

• Operation: Manual lever or optional actuator mounting

• Standards Compliance: Industrial valve standards (socket weld, ISO quality)
