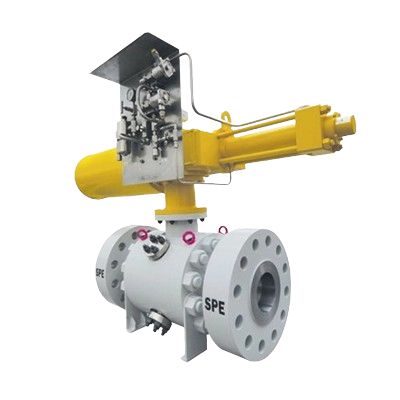

Side Entry Ball Valve
Compact, trunnion-mounted side-entry ball valve suitable for high-flow, high-pressure surface applications. Designed for tough service in oil & gas and industrial systems with soft or metal seating options.
The Surface Side-Entry Ball Valve is a robust, high-performance quarter-turn valve designed for reliable isolation and flow control in demanding industrial and oil & gas surface applications. Its compact trunnion-mounted design allows stable operation under high pressure and high flow conditions while maintaining smooth torque and tight shut-off.
Manufactured as either a 2-piece cast body or 3-piece forged body construction, this valve supports both full bore and reduced bore designs to suit different flow requirements. It can be configured with soft seats for clean media or metal-to-metal seats for high-temperature, abrasive, or corrosive services.
The valve offers wide flexibility in end connections and material selection, including carbon steel, stainless steel, duplex and super-duplex alloys, nickel alloys, and titanium. Optional corrosion-resistant alloy overlays are available for improved durability in aggressive environments.
It is compatible with manual, electric, pneumatic, or hydraulic actuation and is suitable for critical applications such as pipeline isolation, emergency shutdown systems, injection lines, pump stations, LNG facilities, FPSOs, and processing plants.
Designed and manufactured in compliance with major international standards, this valve is fire-safe certified and suitable for sour service environments.
Main Features
- Side Entry Design, two or three pieces
- Forged or Cast Body and Closure
- Trunnion Mounted design
- Bi-Directional Sealing
- Full or Reduced Bore
- Spring Loaded Self-relieving
- Double Block and Bleed (DBB)
- Soft Seated
- Multiple redundant sealing configuration
- Static Sealing: Elastomeric, Thermoplastic or Metallic
- Dynamic Sealing: Elastomeric or Thermoplastic
- Anti static Device
- Anti blow‐out stem
- Fire Safe Design (API 607, API 6FA, ISO 10497)
Options
- Customized size and design pressure according to Project requirements
- Double Isolation and Bleed: provided through Double Piston Effect seats configuration (DIB-1 or DIB-2 as applicable)
- Metal Seated
- Electroless Nickel Plating on Stainless Steel (standard feature on Carbon Steel or LT Carbon Steel Material) on pressure controlling parts
- Emergency Grease
- Injection points
- Extended Stem
- Extended Bonnet
- Available Design Validation: API 6A PR2F, ISO 15848-1, API 6D
- Client specific Type Approval or Design Validation test
- PED
- ATEX
- Overlay Cladding on Sealing Areas or all wetted parts
- Flushing ports / devices for cavity and sealing areas
- Seat debris contamination preventers and/or dedicated scraper rings for bearing sliding areas
- Cryogenic Design
- Welded Pups / Transition pieces
- Painting according to Customer Specification
Benefit
- Compact envelope
- Suitable for large bore, high flow applications
- Extended maintenance free life
Technical Data
API 6D:
2”- 60”
Class: # 150-2500
API 6A:
1 13/16” – 21 ¼”
From RWP Form 13.8 MPa (2.000PSI) to RWP 103.5 MPa (15.000PSI)
QSL 2, QSL3/3G, QSL4/4G
PSL-1, PSL-2, PSL-3, PSL-4
Main Components:
- Carbon steel
- Low temperature carbon steel
- Stainless austenitic steel and super-austenitic steel
- Stainless duplex and super-duplex
- Nickel superalloys (such as Monel, Inconel 625, Hastelloy)
- Titanium
NACE material available upon request
Norsok material available upon request
Hard Facing (Metal Seated):
- Tungsten Carbide Coating
- Chrome Carbide Coating
Seat insert (Soft Seated):
- Devlon
- Peek
- RPTFE
- PCTFE
- Nylon
- Handwheel/ Lever/ Manual gear
- Electric
- Hydraulic actuator (FAI, FC, FO)
- Pneumatic actuator (FAI, FC, FO)
- Direct Gas
- Gas Over Oil
