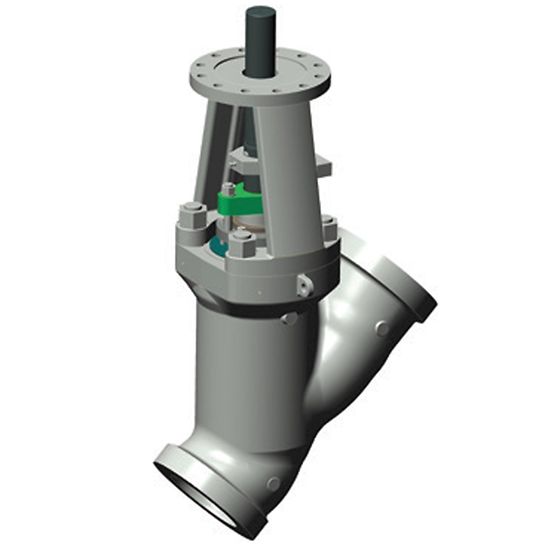

Sempell Fasani Style A High Pressure Globe Valve
The Sempell Fasani Style A High Pressure Globe Valve by Emerson is a forged steel valve engineered for precise throttling and shutoff in extreme pressure and temperature applications. Featuring a pressure-seal bonnet and optimized flow path, it ensures leak-free, durable, and efficient performance in power generation, steam, and process industries.
The Sempell Fasani Style A High Pressure Globe Valve, engineered by Emerson, is a robust, forged steel valve designed for reliable shutoff and throttling control in high-pressure and high-temperature service applications. Built to the highest engineering standards, this valve is ideal for power generation, steam distribution, and process industries where safety, precision, and durability are critical. The Style A globe valve features a pressure-seal bonnet design, ensuring leak-free performance under extreme conditions while minimizing maintenance requirements. Its forged body construction provides exceptional strength and resistance to thermal fatigue and pressure cycling. The optimized flow path and precision-machined trim enable accurate flow control with minimal turbulence and energy loss. Designed to meet stringent ASME and EN standards, the Sempell Fasani Style A valve delivers tight shutoff, long service life, and enhanced operational safety, even in the most demanding process environments.
Technical Specification of Sempell Fasani Style A High Pressure Globe Valve
- Certifications
- ASME B31.1, CE, India Boiler Registration, PED
- End Connection
- Butt Weld
- Application
- Steam turbine, Steam Headers, Pumps, Valves & Manifolds, HRSG, Clean Steam, Biomass Boiler and Power Boiler, Balance of Plant, High Temp
- Body Design
- Long Pattern
- Material
- Carbon Steel, Metal, Alloy, Steel
- Operating Temperature
- High Temperature
- Pressure Class
- ASME
- Process Connection Type
- BWE
- Seat/Seal Type
- Metal-to-Metal
- Shutoff Class
- Class V (FCI 70-2)
- Standards
- ASME B16.34
- Style
- Direct-Operated
- Valve Size
- 6 inch (DN150) and Larger
- Valve Size Standard
- NPS, DN
- Valve Type
- Globe
Feature of Sempell Fasani Style A High Pressure Globe Valve
- A range of compact pressure seal globe valves designed according to ASME B16.34.
- All range is offered in all the material stated in the ASTM specifications (NACE compliance included), and designed to always guarantee the maximum safety and flow efficiency.
- Face to face dimensions as per ASME B16.10
- Available in Y and T pattern design (both also in Stop-Check configuration)
- Seat is welded-in
- Position indicator is offered as standard
- Stellite® gr.6 overlay on seat and disc; Stellite gr.21 overlay on bonnet.
- Standard ISO top mounting for easy assembly of any type of actuator or bevel gear
- Available options: parabolic disc, low emission packing, equalizing and overpressure pipe, limit switch in open or close position.
- Valves are offered as standard with manual operators (Hand wheel or bevel gear depending on size). Actuated options such as electric, pneumatic or hydraulic are available.
