Rotary Gate Valves

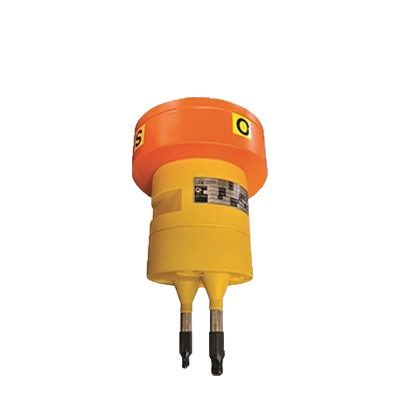

Small-bore, quarter-turn subsea rotary gate valve with metal-to-metal sealing, designed for chemical injection and deep-water control applications.
ATV’s Subsea Rotary Gate Valves are compact, highly reliable quarter-turn valves designed for chemical-injection and control-fluid applications on subsea Christmas trees and production manifolds. These valves feature a robust metal-to-metal sealing system that ensures gas-tight performance while maintaining low operating torque. Built for long-term, maintenance-free service, they are field-proven with a large installed base (TRL-7). They comply with stringent standards such as API 17D and API 6A, and are validated for deep-water operation, with design capability reaching up to 10,000 ft. Their construction allows flexible configuration options, multiple actuation types, and material selections suitable for demanding subsea environments.
Main Features
- Quarter Turn design
- Metal-to-Metal design
- Metal and thermoplastic sealing
- Over-Torque protection
- Anti blow‐out stem
- Panel mountable or block mountable
- Local position indicator
- Design validation to API 17D / API 6A
- Field-Proven technology up to TRL7 due to a large installed base
- Long design life, maintenance free
Options
- Tailored inlet-outlet configurations, parallel or perpendicular to stem
- Client specific Type Approval or Design Validation test
- PED
- Welded Pups or transition pieces
- Painting according to Customer Specification
Benefit
- Compact and sturdy design for chemical injection applications
- Metal-to-Metal gas-tight
- Low operational torques
Technical Data
Greater Depth upon application
Main Components:
- Duplex and Superduplex Stainless Steel
- Nickel Alloys
NACE material available upon request Norsok material available upon request
- Low Torque Paddles
- ROV Bucket
- Hydraulic Actuator (Fail Safe) with ROV override
ATV operators are suitable for electric actuation by drop-in All-Electric Subsea Actuator.
