PTFE Lined Pipe
PTFE Lined Pipe

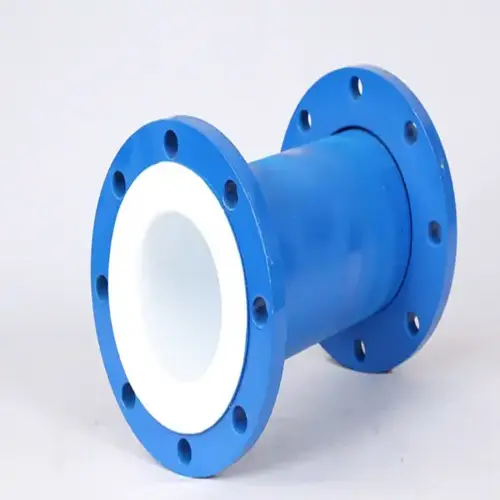

PTFE lined pipes are essential components for conveying highly corrosive or reactive chemicals safely and efficiently in industrial systems. Advect’s PTFE lined pipes are engineered to deliver superior chemical resistance, mechanical durability, and long-term reliability in demanding operating environments.
Our PTFE lined pipe range covers diameters from 25mm to 600mm and lengths up to 6000mm, depending on the pipe size. Each pipe is constructed with one fixed flange and one loose flange, allowing easy alignment and installation. Optional jacketing in different metals—including Carbon Steel, Stainless Steel 304, and Stainless Steel 316—provides flexibility for temperature control and additional protection.
To meet diverse application needs, metal pipe thickness can be customized with options such as Schedule 10, Schedule 20, Schedule 40, and Schedule 80. Standard flange thickness follows AISI standards, with flange ratings of 150#, 300#, and DIN rotating flanges available in various materials. Each pipe includes vent holes for leakage detection and enhanced safety monitoring during operation.
Advect’s PTFE lined pipes are designed and manufactured in full compliance with ASTM F1545, the international standard for plastic-lined pipes and fittings. The seamless PTFE lining is applied using advanced molding and sintering processes, producing a smooth, non-stick interior that prevents contamination, minimizes pressure drop, and enhances flow performance.
These pipes are ideal for chemical, petrochemical, pharmaceutical, and water treatment applications where high corrosion resistance is critical. PTFE’s inertness to most chemicals—including strong acids, alkalis, solvents, and oxidizing agents—makes it a reliable choice for aggressive service conditions. The combination of thermal stability, low friction, and non-reactive characteristics ensures efficient and clean transport of fluids.
By integrating the strength of steel with the exceptional chemical resistance of PTFE, Advect’s lined pipes provide a long-lasting, low-maintenance solution for corrosion protection. Each product undergoes rigorous inspection and testing to ensure leak-free performance and full compliance with project specifications.
Choose Advect’s PTFE lined pipes for dependable, high-performance solutions that ensure safety, efficiency, and durability in corrosive fluid handling systems.
