Pipe Reducers

Pipe Reducers

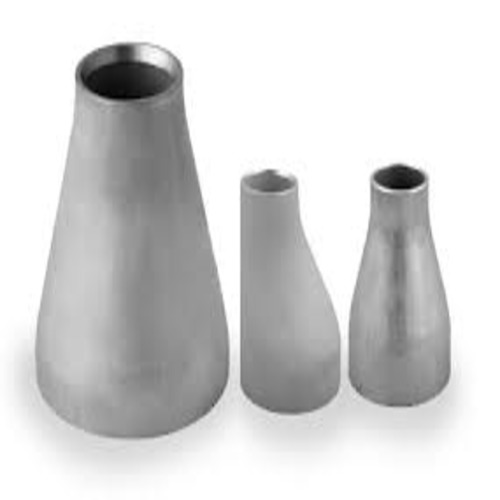

Pipe reducers are essential components used in piping systems to connect pipes of different diameters. These fittings ensure smooth fluid flow and system integrity by transitioning from one pipe size to another. Available as Concentric Reducers (symmetrical shape for vertical piping systems) and Eccentric Reducers (offset for horizontal installations), they are widely used in pipelines where flow control, pressure regulation, or system alignment is required. Size availability ranges from 1/2” to 80”, with wall thicknesses covering Schedule 5S to XXS, ensuring versatility across industrial and commercial applications.

Types and Functionality:

• Concentric Reducers are cone-shaped and align the centerline of both pipe sizes, ideal for vertical flow or pump inlets.

• Eccentric Reducers have an offset design and are used in horizontal piping to prevent air accumulation or cavitation, especially in pump suction lines.
  Both types provide smooth flow transition, reduce turbulence, and help in maintaining system pressure and mechanical performance in critical applications like water treatment, oil & gas, chemical processing, and power plants.

Material and Manufacturing Standards:

Reducers are manufactured from a variety of durable materials tailored to application requirements:

• Carbon Steel: ASTM A234 WPB/WPC, A105, A106, A53, API5LB, etc.

• Stainless Steel: 304/304L, 316/316L, 316Ti, 321, 317L, 310S

• Alloy Steel: Grades like A335-P1 to P92, A213 T9, T12, A369-FP1

• Duplex Stainless Steel: S31803 (2205), S32750 (2507), S31500 (3RE60)
  All reducers conform to standards like ANSI B16.9, MSS SP-43, SP-75, ASTM B363, DIN 2605–2617, ensuring high performance and dimensional accuracy.

Size & Technical Data:

Available in a wide range of dimensional configurations (e.g., 4″ x 2″, 16″ x 10″, 36″ x 24″), reducers are offered with exact wall thicknesses and lengths, allowing precise selection based on pressure and space requirements. Weight specifications are well-documented per each size variation. This data ensures accurate calculations for pipeline design and installation. Sizes like 48” x 30” reducers can weigh over 500 lbs, ideal for large-scale infrastructure projects and fluid transport systems.

Applications and Finishing Options:

Reducers are crucial in applications involving flow regulation, pressure adjustments, and pump fittings, especially in industries such as refineries, shipbuilding, marine, and HVAC systems. Surface treatments include black paint, rust-proof oil, galvanized, and bright finish, ensuring resistance to corrosion and environmental exposure. Whether for low or high-pressure systems, reducers ensure seamless performance, leak resistance, and long service life.
