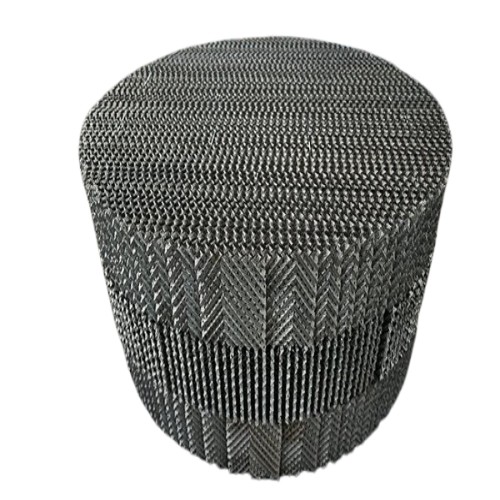

Perforated Plate Structured Packing
The Perforated Plate Structured Packing is a high-performance mass transfer solution designed to maximize vapor–liquid interaction in chemical process towers. It consists of thin metal sheets that are punched and corrugated to create a structured configuration, ensuring efficient contact between gas and liquid phases. This design enables superior separation efficiency, reduced pressure drop, and enhanced absorption capabilities across a variety of industrial applications.
Perforated Plate Structured Packing
The Perforated Plate Structured Packing is a high-performance mass transfer solution designed to maximize vapor–liquid interaction in chemical process towers. It consists of thin metal sheets that are punched and corrugated to create a structured configuration, ensuring efficient contact between gas and liquid phases. This design enables superior separation efficiency, reduced pressure drop, and enhanced absorption capabilities across a variety of industrial applications.
Each plate features precision-engineered perforations, typically 4–5 mm in diameter, and small surface spines created through controlled pitting. These microstructures increase the surface roughness and retention time of liquids, promoting better wetting and more effective vapor–liquid exchange. As a result, Valor’s perforated plate structured packing achieves outstanding performance in distillation, absorption, and extraction processes, particularly in demanding environments such as oil refining, petrochemical production, fine chemical manufacturing, and pharmaceutical operations.
Valor offers multiple styles of perforated plate structured packing, including 125Y, 250Y, 350Y, 450Y, 500Y, 700Y, 252Y, and 352Y, each optimized for specific column design and mass transfer requirements. These variations provide flexibility in balancing pressure drop, efficiency, and throughput, allowing process engineers to tailor solutions based on unique operational parameters.
Manufactured from high-quality materials such as carbon steel, SS304L, SS316L, SS321, SS310, SS410, Duplex 1.4462, and titanium grades Gr.2 and Gr.7, Valor’s perforated plate structured packing offers excellent corrosion resistance, mechanical strength, and temperature stability. The materials are chosen to withstand harsh chemical environments while maintaining dimensional accuracy and long service life.
This structured packing’s low liquid holdup, strong anti-fouling properties, and easy cleanability make it ideal for systems requiring high purity and reliability. Its design effectively minimizes gas flow resistance, leading to a low-pressure drop and improved energy efficiency. Moreover, installation and maintenance are straightforward, thanks to the modular design and consistent geometry of the packing units.
Common applications include rectification, vacuum distillation of heat-sensitive materials, air separation processes, and solvent recovery systems. In vacuum operations, the packing’s open structure prevents flooding while maintaining exceptional mass transfer efficiency, even under low liquid loads.
Valor’s commitment to innovation and quality ensures that every perforated plate structured packing unit meets international standards such as ASME, API, and EN, guaranteeing superior performance and dependability. Each product can be customized to suit specific tower configurations and process demands, making Valor a trusted partner for separation and purification technologies.
