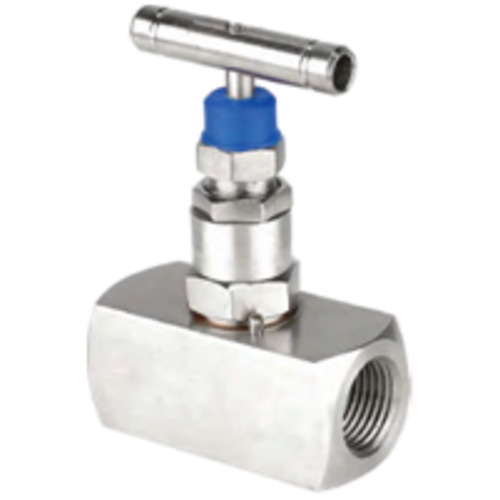

NEEDLE VALVE – M X F Type

NEEDLE VALVE – M X F Type

The M x F (Male x Female) Needle Valve is designed for precise flow control and shut-off in high-pressure applications. Manufactured to withstand pressures of up to 10,000 PSI, this valve is ideal for use in instrumentation, hydraulic, and process control systems.

Crafted from high-quality materials such as Stainless Steel, Carbon Steel, Alloy Steel, Brass, and Nickel Alloy, these valves offer durability, corrosion resistance, and long service life, even in demanding environments. The threaded male x female configuration allows easy installation in piping systems and tight spaces.

Available in sizes from 1/8” to 2”, with a range of end connection standards (NPT, BSP, BSPT, SW), this needle valve type is both versatile and reliable, making it a key component in any high-pressure fluid or gas system.

Technical Specifications

• Type: M x F (Male x Female)

• Material of Construction (M.O.C):

  • Stainless Steel

  • Carbon Steel

  • Alloy Steel

  • Brass

  • Nickel Alloy

• Size Range: 1/8″ to 2″

• End Connections:

  • NPT

  • BSP

  • BSPT

  • Socket Weld (SW)

• Pressure Rating: Up to 10,000 PSI

Key Features

• Precision flow control

• Rugged construction for high-pressure use

• Male x Female threaded connection for easy in-line installation

• Wide material compatibility

• Suitable for corrosive and high-pressure media

• Leak-tight shut-off and adjustable flow

Applications

• Instrumentation and calibration systems

• Oil & gas and petrochemical facilities

• Hydraulic and pneumatic circuits

• Pressure gauge isolation

• Test stands and lab equipment

• Power plants and offshore platforms
