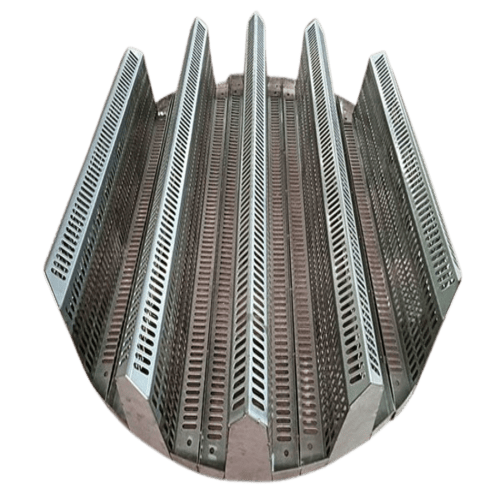

Multi-Beam Packing Support Grid
The Multi-Beam Packing Support Grid is a heavy-duty internal component used in large-diameter distillation, absorption, and stripping columns to provide robust support for random and structured packing. Its unique multi-beam framework maximizes open area, ensuring low pressure drop, uniform vapor-liquid flow, and high mechanical stability during operation. Engineered for superior performance in demanding process environments, this grid guarantees both structural strength and efficiency across various industrial applications.
Multi-Beam Packing Support Grid
The Multi-Beam Packing Support Grid is a heavy-duty internal component used in large-diameter distillation, absorption, and stripping columns to provide robust support for random and structured packing. Its unique multi-beam framework maximizes open area, ensuring low pressure drop, uniform vapor-liquid flow, and high mechanical stability during operation. Engineered for superior performance in demanding process environments, this grid guarantees both structural strength and efficiency across various industrial applications.
Manufactured from high-quality stainless steel and corrosion-resistant alloys, Valor’s Multi-Beam Packing Support Grid combines mechanical reliability with chemical durability. Its modular segmental design facilitates easy installation, inspection, and maintenance, making it ideal for large industrial towers where downtime reduction is crucial. The grid is designed to distribute loads evenly and prevent packing displacement or channeling, which are critical to maintaining consistent mass transfer performance.
With over 15 years of experience in designing and producing tower internals, Valor offers customized grid configurations tailored to specific tower dimensions, load capacities, and operating conditions. Every grid is produced in-house under strict ISO 9001 quality control standards, ensuring precision fabrication, full process traceability, and long service life. Valor’s professional engineering team works closely with clients to ensure optimal design alignment with process requirements and performance targets.
The Multi-Beam Packing Support Grid’s versatility extends across multiple industries, including oil and gas refining, petrochemical production, environmental scrubbing, and fertilizer manufacturing. Its strong construction, reliable vapor-liquid distribution, and ease of maintenance make it a preferred choice for modern separation processes.
Key Features
High Strength & Load Bearing – Designed to handle heavy packing loads in large-diameter towers.
Maximum Open Area – Ensures minimal pressure drop and efficient gas-liquid distribution.
Corrosion Resistance – Constructed from stainless steel or high-alloy materials.
Modular Segmental Design – Simplifies transportation, installation, and inspection.
Custom Engineering – Tailored to specific process and dimensional requirements.
Easy Maintenance – Allows quick removal and reinstallation during shutdowns.
Applications
-
Distillation and absorption columns
-
Petrochemical and refining towers
-
Chemical synthesis and purification systems
-
Flue gas scrubbing and environmental treatment units
-
Fertilizer and ammonia production plant
