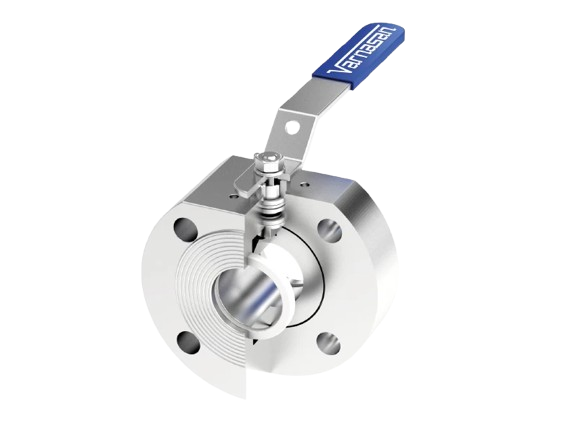

Monoblocked Stainless Steel Ball Valves

The Monoblock Stainless Steel Ball Valve is a robust industrial valve engineered for reliable fluid control in demanding applications. Manufactured as a one‑piece (monoblock) stainless steel design, this valve delivers tight shut‑off and long-term durability in systems handling corrosive fluids, acids, bases, and specialty media in food, chemical, pharmaceutical, and plastic production environments. Built with high-grade materials such as AISI 304 and AISI 316 stainless steel, it provides excellent corrosion resistance and high-temperature performance. Certified to global quality and safety standards including CE, ATEX, ADR, Fire Safe, and ISO 9001:2015, the product is suitable for both manual and automated installations with optional actuator mounting.

Features

• Durable Monoblock Design: One-piece body minimizes leakage paths

• High Corrosion Resistance: Stainless steel construction resists aggressive media

• Wide Temperature Range: Performs reliably from –30°C to +180°C

• Certified Quality & Safety Standards: Complies with multiple international certificates

• Versatile Industry Use: Ideal for chemical, pharmaceutical, food & beverage, and plastics industries

• Actuator Integration: Actuator-ready with ISO 5211 interface for automation

• Reliable Sealing: PTFE seats and Viton O-rings provide long service life with minimal maintenance

• Manual or Automated Operation: Comes with a manual handle; actuator mountable

Technical Specifications

• Valve Type: Monoblock stainless steel ball valve

• Body Material: AISI 304 / AISI 316 stainless steel

• Working Pressure: PN16, PN40

• Working Temperature: –30°C to +180°C

• Certificates:

  • CE0042

  • TS EN 10204 3.1

  • ATEX

  • ADR

  • Fire Safe

  • ISO 9001:2015

  • SIL3

• Applications: Suitable for corrosive fluids (acids, bases), pharmaceutical raw materials, food processing, chemical & plastics industries

• Actuator Ready: ISO 5211 mounting pad (where applicable)

• Connection Standard: EN 1092-1 flanged

• Operation: Manual lever or actuator mounting option

• Seals: PTFE and Viton components for tight sealing and chemical resistance
