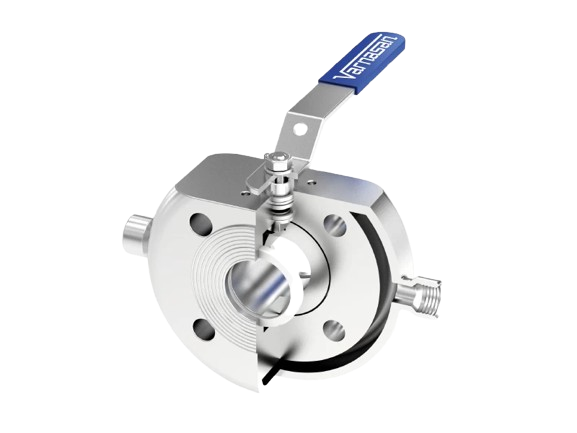

Monoblock Jacketed Stainless Steel Ball Valve

The Varnasan Monoblock Jacketed Stainless Steel Ball Valve is a high-performance industrial flow control valve designed for demanding and corrosive operating conditions. Manufactured from premium stainless steel, this valve features a robust single-piece (monoblock) body that minimizes leakage risks while ensuring long-term durability.

Its jacketed design allows for temperature control of the media flowing through the valve, making it ideal for processes involving temperature-sensitive fluids such as chemicals, food products, pharmaceuticals, and plastic raw materials. The valve provides tight shut-off, smooth operation, and compatibility with both manual and automated systems.

Certified to international quality and safety standards, this ball valve is suitable for use in high-pressure industrial environments and can be easily integrated with pneumatic or electric actuators for automated flow control.

Features

• Single-piece monoblock body for superior strength and leak prevention

• Jacketed structure for effective temperature control of process media

• High resistance to corrosion and aggressive fluids

• Suitable for high-pressure industrial applications

• Smooth and reliable shut-off performance

• Actuator-ready for automated systems

• Long service life with minimal maintenance

• Fire-safe and safety-certified design

• Compatible with demanding industrial environments

Technical Specifications

• Valve Type: Monoblock Jacketed Ball Valve

• Body Material: Stainless Steel (AISI 304 / AISI 316)

• Pressure Rating: PN16 / PN40

• Operating Temperature Range: -30 °C to +180 °C

• Body Design: Single-piece (Monoblock)

• Connection Type: Flanged

• Automation Interface: ISO 5211 mounting

• Operation: Manual or actuator-driven

• Certifications: CE, ISO 9001, ATEX, Fire Safe, SIL 3

• Applications: Chemical, food processing, pharmaceutical, plastics, and industrial fluid systems
