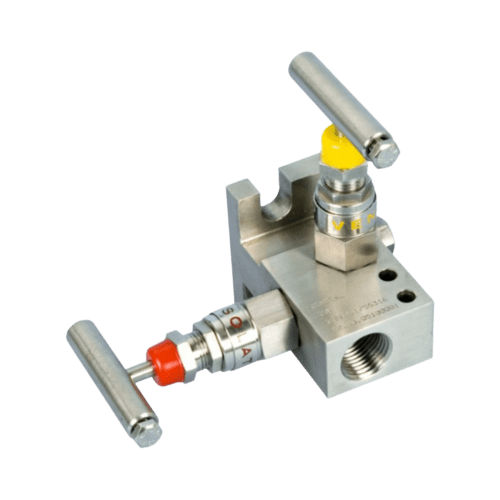

MANIFOLD VALVE Two Valve “T” type Manifold valve Pipe to Flange Model- SE-20-2VM-T

Description

The SE-20-2VM-T is a two-valve “T” type manifold designed for accurate pressure control in process instrumentation. It features one block valve and one vent valve arranged in a “T” configuration for direct and efficient flow management. The Pipe to Flange connection allows easy integration between threaded pipe systems and flanged instruments such as pressure transmitters.

Functionality:

Block and Vent Control:

Block valve: isolates the instrument from the process line.

Vent valve: releases pressure or allows calibration without removing the instrument.

“T” Configuration:

The T-shaped layout simplifies access and streamlines flow paths.

Ideal for direct mounting and compact installations.

Pipe to Flange Connection:

Designed for threaded pipe inlet and flanged instrument outlet (e.g., pressure transmitter or gauge).

Allows easy, secure integration between pipe systems and flange-type instruments.

Remote Operation Capability:

Can be used in remote or high-vibration locations to protect instrumentation from harsh conditions.

Specifications:

Model: SE-20-2VM-T

Design Type: Two-Valve, “T” Type Manifold

Connections:

Inlet: Pipe (e.g., 1/2″ NPT female)

Outlet: Flanged (typically ANSI or DIN standard)

Material: SS316 (standard); other alloys available upon request

Pressure Rating: Up to 6000 psi (413 bar), depending on model/material

Temperature Range: -40°C to +230°C (based on seal material)

Seal Options: PTFE, Graphite, or Viton

Mounting Type: Remote / Direct to transmitter
