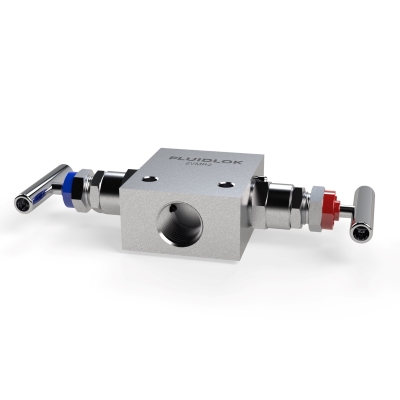

MANIFOLD VALVE Two Valve Manifold Remote Mount Flat Type Pipe X Pipe Model- SE-20-2VM-R

Description

The SE-20-2VM-R is a two-valve manifold designed for remote mounting in pressure measurement systems. It features a flat type body for compact installation and includes two key valves: one for blocking (isolation) and one for venting (bleeding or calibration). The Pipe x Pipe connections provide easy integration with threaded piping systems, ensuring leak-tight and secure connections.

Functionality:

Pressure Isolation and Venting:

One block (isolation) valve to shut off process pressure.

One vent valve to release trapped pressure or calibrate instruments.

Remote Mount Capability:

Designed for installation away from instruments, ideal for high-vibration or high-temperature environments.

Reduces mechanical stress on transmitters or gauges.

Flat Type Design:

Compact and low-profile body allows easy mounting and alignment on flat panels or brackets.

Ensures space efficiency and organized tubing layout.

Pipe x Pipe Connection:

Standard female threaded pipe connections for simple integration into pipeline systems.

Provides secure, leak-tight sealing for industrial applications.

Specifications:

Model: SE-20-2VM-R

Valve Type: Two-valve manifold (Block + Vent)

Mounting: Remote, Flat Type

Connection Size: Typically 1/2″ NPT (verify exact specs from datasheet)

Material: Stainless steel (SS316 or equivalent)

Max Pressure Rating: Up to 6000 psi (varies with material and design)

Temperature Range: -40°C to +230°C (dependent on seal material)

Seal Options: PTFE, Graphite, or Viton

Application Areas: Pressure measurement systems in oil & gas, petrochemical, power plants, and process industries
