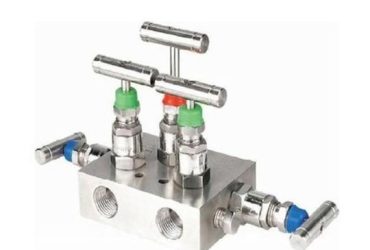

MANIFOLD VALVE Five Valve Manifold Direct Mount T Type Pipe X Flange Model- SE-80-5VM-T
The SE-80-5VM-T is a five-valve manifold with a T-type configuration for direct mounting. It features two block valves, two equalizing valves, and one vent valve. With Pipe x Flange connections, it offers accurate differential pressure control, safe calibration, and efficient maintenance in demanding industrial applications.
The SE-80-5VM-T is a five-valve manifold designed for direct mounting to differential pressure transmitters. It features a T-type configuration and Pipe x Flange connections, allowing for efficient and secure integration between process piping and the instrument.
The valve assembly:
Two block valves – isolate high and low-pressure lines.
Two equalizing valves – balance pressure during zeroing.
One vent/drain valve – releases trapped pressure or fluid safely.
This design enables complete control over pressure measurement, calibration, and maintenance without disrupting the process
