Lined Taper Dip Pipe & Dip Pipe Sparger
ADVECT Process Systems Canada Ltd. designs and manufactures Lined Taper Dip Pipes and Dip Pipe Spargers engineered for superior corrosion resistance, process reliability, and extended service life. These components are essential for handling corrosive and hazardous process fluids in chemical, petrochemical, and pharmaceutical industries.
Lined Taper Dip Pipe & Dip Pipe Sparger
ADVECT Process Systems Canada Ltd. designs and manufactures Lined Taper Dip Pipes and Dip Pipe Spargers engineered for superior corrosion resistance, process reliability, and extended service life. These components are essential for handling corrosive and hazardous process fluids in chemical, petrochemical, and pharmaceutical industries.

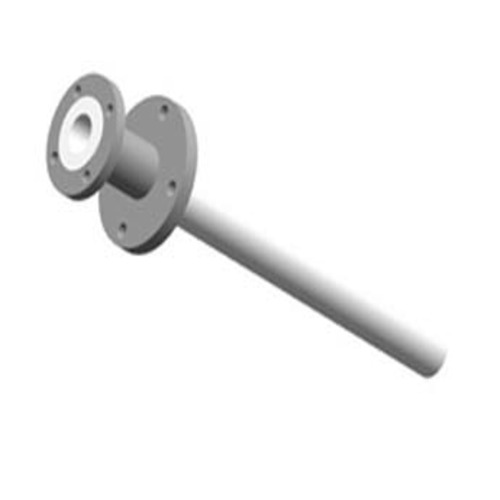

Product Description Of Lined Taper Dip Pipe & Dip Pipe Sparger
The Lined Taper Dip Pipe is used for introducing or withdrawing liquids from reactors, vessels, or storage tanks. Its tapered geometry ensures uniform flow and minimizes turbulence, reducing pressure drops and enhancing efficiency. The Dip Pipe Sparger, on the other hand, facilitates controlled gas distribution or liquid spraying inside reactors, improving mixing, aeration, or chemical reaction performance.
Each dip pipe is internally and externally lined with PTFE (Polytetrafluoroethylene), ensuring exceptional chemical inertness and protection from aggressive acids, alkalis, and solvents. This dual lining prevents corrosion both from the inside (fluid contact) and outside (environmental exposure), making the design robust and long-lasting.
Specifications Of Lined Taper Dip Pipe & Dip Pipe Sparger
| Component | Material / Standard |
|---|---|
| Body | Seamless CS / SS ASTM A106 |
| Flange | IS 2062 / ASTM A105 Gr. B |
| Drilling Standard | ANSI B16.5 #150 |
| Lining | PTFE (Inside & Outside) |
| Spark Test (Internal) | 10 Kv |
| Spark Test (External) | 5 Kv |
| Dip Pipe Angle | 12° |
Dimension Details for Taper Dip Pipe
| Capacity (Liters) | Dip Pipe Size (NB mm) | Nozzle Dia (mm) | Length (L mm) |
|---|---|---|---|
| 160 | 25 | 80 | 650 |
| 250 | 25 | 80 | 800 |
| 500 | 40 | 100 | 850 |
| 630 | 40 | 100 | 1015 |
| 1000 | 50 | 200 | 1275 |
| 1600 | 50 | 200 | 1480 |
| 2000 | 50 | 200 | 1680 |
| 2500 | 50 | 200 | 1725 |
| 3000 | 50 | 200 | 1870 |
| 4000 | 50 | 250 | 2075 |
| 5000 | 50 | 250 | 2300 |
| 6300 | 50 | 250 | 2300 |
Key Features Of Lined Taper Dip Pipe & Dip Pipe Sparger
-
Full PTFE lining on both internal and external surfaces
-
Excellent chemical and thermal resistance
-
Optimized taper design for smooth flow and reduced pressure loss
-
Available with customized nozzle and length options
-
100% spark-tested to ensure leak-free performance
-
Ideal for corrosive liquid transfer and gas distribution applications
Applications Of Lined Taper Dip Pipe & Dip Pipe Sparger
-
Chemical and petrochemical process systems
-
Reactor fluid transfer and gas sparging
-
Pharmaceutical and specialty chemical manufacturing
-
Acid, solvent, and caustic handling operations
