High Pressure Ball Valve

High Pressure Ball Valve

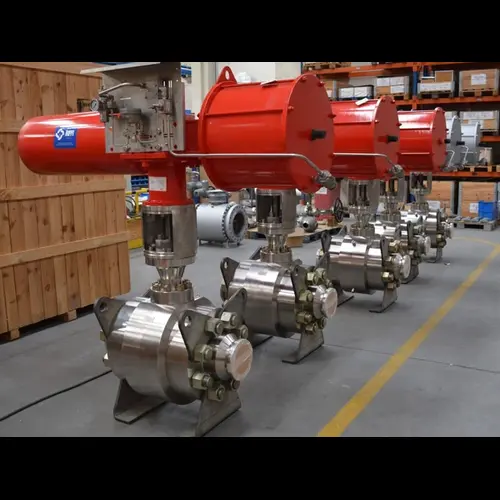

We offer a versatile range of two- or three-piece forged bolted body trunnion mounted ball valves, built for critical isolation services in high-pressure and high-temperature environments. These valves feature two independent seats, providing bidirectional sealing and exceptional tightness, ensuring safe and reliable performance.

A key offering in this range is the high-pressure compact ball valve, which delivers the same level of quality and reliability as standard API 6D valves but with significant space and weight reductions. This is achieved through compact flange designs and compact welding neck flanges, optimizing system integration in space-constrained applications.

Manufactured to API 6D standards and customizable to meet specific project requirements, these valves offer reliable performance across a wide temperature and pressure range, making them ideal for demanding industrial environments.

Key Features

• Design Standard: API 6D and project-specific requirements

• Temperature Range: -150 to 428°F (-101 to 220°C)

• Size Range: NPS 2 to 24 (DN 50–600)

• Pressure Rating: ASME 900 to ASME 2500

• End Connections: RF, RTJ (per ASME B16.5 & B16.47), BW (per ASME B16.25)

• Construction: Forged two- or three-piece bolted body

• Sealing: Dual seats for bidirectional sealing

• Compact Design: Space- and weight-saving compact flange configurations

• Customization: Materials and features tailored to client needs

Applications

• Oil & gas pipelines

• High-pressure transmission systems

• Petrochemical and chemical plants

• Refining and terminal isolation

• Offshore and onshore production
