Globe Valves
High-performance surface globe valves engineered for precise flow control and shut-off in high-pressure, high-temperature industrial systems, compliant with BS 1873 / API 623 standards.

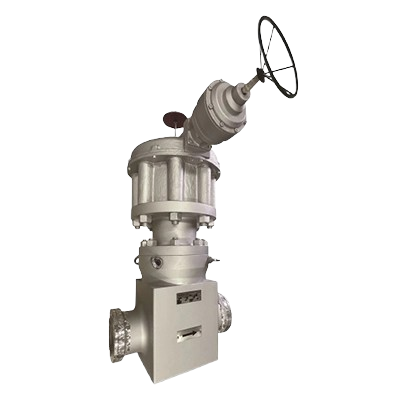

Surface Globe Valves by ATV SPA are robust, high-performance industrial valves designed for throttling, flow regulation, and shut-off in demanding high-pressure and high-temperature applications. Built according to BS 1873 / API 623 standards, these valves feature a T-pattern design with forged or cast bodies and bonnets, outside screw and yoke construction with a non-rotating stem, and hardfaced plug and seat for excellent sealing and durability.
They are suitable for frequent cycling, precise flow regulation, and uni-directional throttling, and can be highly customized for specific project requirements.
Main Features
- Designed according to BS 1873 / API 623
- T-Pattern design
- Forged or Cast Body and Bonnet
- Bolted Bonnet
- Outside screw and yoke construction, with non-rotating stem
- Suitable for uni-directional throttling and frequent cycling
- Metal seated
- Hardfaced plug and seat
- Integral, Welded-in or removable seat
- Different disc designs to provide different flow (linear, equipercentage)
- Static Sealing: Metallic
- Dynamic Sealing: Graphite or Thermoplastic (on stem)
- Anti blow‐out stem
- Fire Safe Design (API 607, API 6FA, ISO 10497)
Options
- Customized size and design pressure according to Project requirements
- Available Design Validation: API 6A PR2F, ISO 15848-1, API 6D
- Client specific Type Approval or Design Validation test
- PED
- ATEX
- Pressure Seal design
- Y-Pattern design available available
- Low temperature Service Design
- High temperature Service
- Emergency Grease Injection points on stem
- Overlay Cladding on Sealing Areas
- Welded Pups / Transition pieces
- Painting according to Customer Specification
Benefit
- Robust design
- High sealing capability
- Particularly recommended for High Pressure and High Temperature Services
Technical Data
Class: # 150-4500
BS 1873 / API 623
Main Components:
- Carbon steel
- Low temperature carbon steel
- Stainless austenitic steel and super-austenitic steel
- Stainless duplex and super-duplex
- Nickel superalloys (such as Monel, Inconel 625, Hastelloy)
NACE material available upon request
Norsok material available upon request
- Handwheel/ Manual gear
- Electric
- Hydraulic actuator
- Pneumatic actuator
