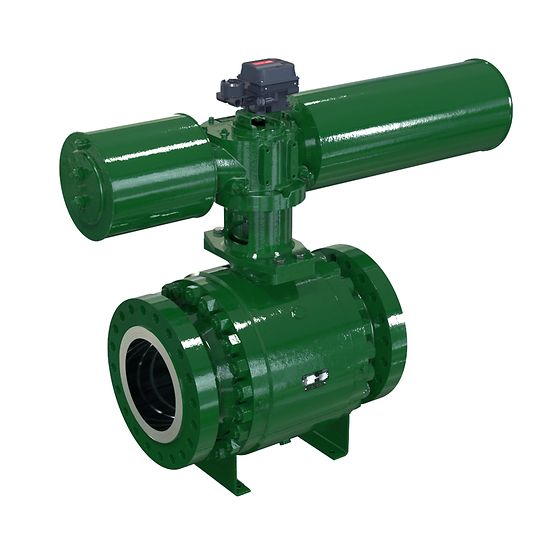

Fisher V270 Full-Bore Ball Control Valve
The Fisher V270 is a three piece, trunnion mounted, full-bore control valve designed from the ground up with features for optimized pressure, flow and process control. The V270 full-bore ball valve is designed for automated control in bypass, batch, monitor, and emergency shutoff service applications, and it presents little or no restriction to flow. The V270 full-bore ball valve is available with composition seals, and process type live-loaded shaft packing for improved service life and lower emissions.
The Fisher™ V270 Full-Bore Ball Control Valve, designed by Emerson, is a high-performance control valve engineered to deliver precise flow regulation in demanding industrial and process applications. Combining the robust design of a full-bore ball valve with advanced control capabilities, the V270 provides accurate throttling, tight shutoff, and minimal pressure drop, making it ideal for oil and gas, chemical, petrochemical, and power generation systems. The V270 features a trunnion-mounted ball design, providing stable operation under high-pressure conditions while minimizing torque and wear. Its full-bore construction ensures unobstructed flow, preventing pressure loss and allowing for pigging or cleaning operations in pipeline systems. Paired with Fisher actuators and digital positioners, the valve provides precise, automated control, enhancing system efficiency, reliability, and process safety. Available in various body materials, trim configurations, and end connections, the Fisher V270 can be tailored for high-pressure, high-temperature, and corrosive media service, providing flexibility across a wide range of industrial applications.
Technical Specification of Fisher V270 Full-Bore Ball Control Valve
- Certifications
- CRN, NACE, CUTR, PED, API 607, API 6FA
- Critical Service
- General Service
- Flow Characteristics
- Modified Equal Percentage
- Material
- Carbon Steel
- Operating Temperature
- Standard Temperature
- Pressure Class
- ASME
- Process Connection Type
- Flanged
- Shutoff Class
- Class VI (FCI 70-2)
- Valve Size
- NPS 6, NPS 8, NPS 10, NPS 12, NPS 14, NPS 16, NPS 20, NPS 24
- Valve Size Standard
- NPS
- Other Configurations
- Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Feature of Fisher V270 Full-Bore Ball Control Valve
- Shaft and trunnion guiding provides improved dynamic control.
- Standard construction materials comply with NACE Standard MR0175 / IS 15156.
- Self-adjusting seals are pressure assisted to provide Class VI shutoff for long, reliable service. Design incorporates a heavy duty S31600 stainless steel carrier that retains the composition seal.
- Comes standard with a base bracket allowing the valve to sit upright.
- The ball trunnions are designed for demanding applications requiring long service life, with a reduction in maintenance time and costs.
- Design comes standard with a dual seal arrangement.
- Optional fire tested construction.
