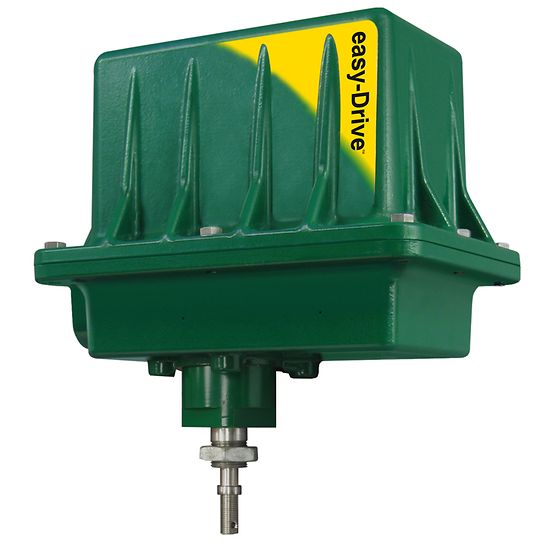

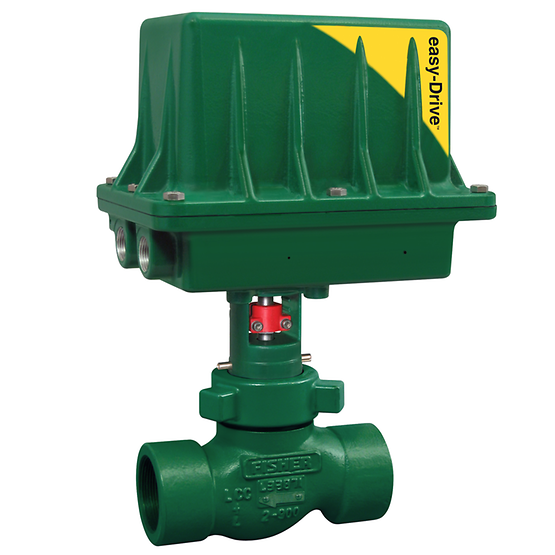

Fisher easy-Drive 200L Electric Actuator
The Fisher easy-Drive 200L Electric Actuator by Emerson delivers precise, efficient, and maintenance-free control for linear valves using advanced electric drive technology—ideal for remote, energy-efficient, and automated operations.
The Fisher easy-Drive™ 200L Electric Actuator is a high-precision, electronically powered actuator designed to provide reliable, efficient, and maintenance-free operation for linear control valves. Developed by Emerson, it combines advanced electric drive technology with Fisher’s proven valve control expertise—offering accurate positioning, fast response, and exceptional performance in both throttling and on/off applications. Unlike pneumatic actuators, the Fisher easy-Drive 200L uses an electric motor and integrated control electronics, eliminating the need for an external air supply. This makes it ideal for remote locations or facilities aiming to reduce instrument air consumption and energy costs. The actuator’s compact and robust design provides consistent performance in harsh environments, including oil and gas, chemical processing, and power generation. The integrated digital electronics deliver precise control and diagnostics capabilities. Operators can easily monitor position, status, and performance data locally or remotely through standard communication protocols such as Modbus, HART, or FOUNDATION Fieldbus, depending on configuration. Built with corrosion-resistant materials and designed to withstand severe service conditions, the easy-Drive 200L ensures long-term reliability, minimal maintenance, and superior control accuracy. It’s an excellent solution for operators seeking electrification, sustainability, and automation efficiency in valve control systems.
Technical Specification of Fisher easy-Drive 200L Electric Actuator
- Actuation
- Linear, Electric
- Area Classification
- Class 1 Div 1 / Zone 1
- Certifications
- CSA, ATEX, IECEx
- Control Type
- On/Off, Positioning
- Operating Temperature
- Standard Temperature
- Power Source
- Electric
- Process Control
- On/Off, Positioning
- Valve Type
- Globe Valve
- Other Configurations
- Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Feature of Fisher easy-Drive 200L Electric Actuator
- Stable operation, despite application conditions.
- Remote monitoring reduces trips to the field.
- Zero venting of product to the atmosphere.
- Low power requirements.
- Simple set-up and operation.
- Diagnostics are available over Modbus protocol.
