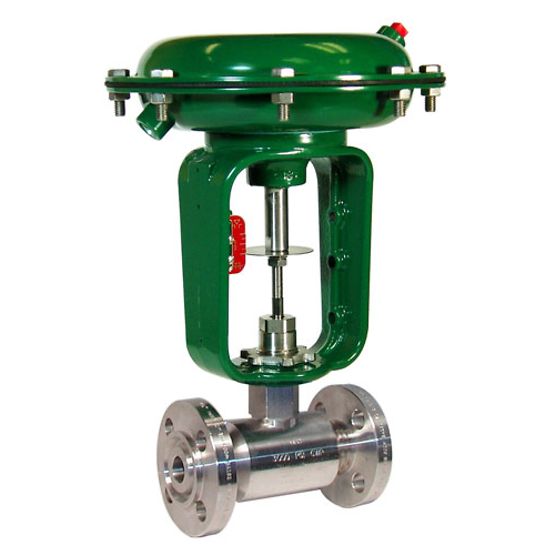

Fisher™ Baumann™ 24000SB Bar Stock Control Valve
The Baumann 24000SB control valve is recommended for low flow, high pressure, and industrial control applications. With a Cv rating as low as 0.00013, the 24000SB offers low precise flow for injection applications. Various end connections ranging from threaded (standard), butt weld, and flanged add versatility to this high-pressure product line. Special high nickel alloy constructions are available and round out the basic S31600/S31603 stainless steel offering
The Fisher™ Baumann™ 24000SB Bar Stock Control Valve is a compact, high-precision control valve designed for modulating flow in high-pressure and clean fluid applications. Manufactured from bar stock stainless steel, this valve delivers exceptional corrosion resistance, tight shutoff, and superior flow control in steam, gas, and liquid service across a wide range of industrial environments. Engineered by Emerson, the 24000SB valve combines Baumann’s proven control technology with Fisher’s advanced actuator and positioner systems, offering precise performance, reliability, and ease of maintenance. Its streamlined body design reduces turbulence and noise, while the integrated trim options provide stable operation under varying flow conditions. The Fisher™ Baumann™ 24000SB is ideal for applications where compact size, low weight, and high control accuracy are critical — including pharmaceutical, food and beverage, chemical, and general industrial processes. The valve is also compatible with Fisher™ FIELDVUE™ digital valve controllers, enabling smart diagnostics and predictive maintenance capabilities.
Technical Specification of Fisher™ Baumann™ 24000SB Bar Stock Control Valve
- Certifications
- PED, CUTR, ATEX, CRN
- Critical Service
- Low Flow
- Flow Characteristics
- Equal Percentage, Linear
- Material
- Stainless, Alloy
- Operating Temperature
- Cryogenic, Standard Temperature, High Temperature
- Pressure Class
- ANSI CL150, ANSI CL300, ANSI CL600, ANSI CL900, ANSI CL1500
- Process Connection Type
- Flanged, Butt Weld, Threaded
- Shutoff Class
- Class IV (FCI 70-2), Class VI (FCI 70-2)
- Valve Size
- NPS 1/2, NPS 3/4, NPS 1
- Valve Size Standard
- NPS
- Other Configurations
- Contact your local Emerson sales office to learn about additional specifications or options for this product.
Feature of Fisher™ Baumann™ 24000SB Bar Stock Control Valve
- Compact and light weight design reduces installed piping costs.
- Superior dual plug and stem guiding provides increased stability during plug travel.
- Multiple trim capacity reductions available to meet changing process requirements with Cv ratings as low as 0.00013.
- Optional extended bonnet for applications ranging from -195°C to 537°C (-320°F to 1000°F).
- Epoxy powder coated actuator with stainless steel fasteners for corrosion resistance.
- Multi-spring, field reversible actuator with reduced deadband, permits direct operation from remote signal devices.
- Optional Fisher™ enhanced ENVIRO-SEAL™ packing system to meet critical emission control requirements.
- Fisher FIELDVUE™ digital valve controller is available for remote calibration and diagnostics.
