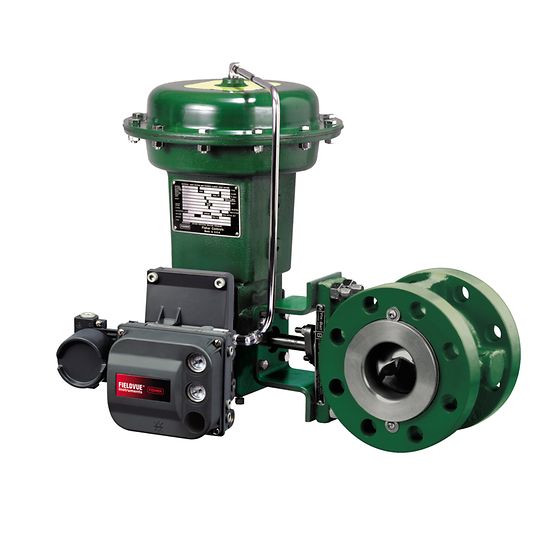

Fisher 1052 Rotary Actuators

The Fisher 1052 Rotary Actuator is a rugged, spring-and-diaphragm pneumatic actuator engineered to deliver precise and reliable rotary motion for quarter-turn valves, such as ball, butterfly, and rotary plug valves. Designed by Emerson, this actuator combines simplicity, accuracy, and long service life—making it ideal for throttling and on/off control in critical process applications. Built on a proven spring-and-diaphragm principle, the Fisher 1052 actuator converts pneumatic pressure into a powerful, smooth, and stable rotary motion. The rolling diaphragm design minimizes friction and ensures precise positioning with excellent repeatability and linear response. Available in both single-acting (spring-return) and double-acting configurations, it offers flexibility for various control and fail-safe requirements. The actuator’s compact and robust construction provides a high torque-to-size ratio, while its direct valve mounting eliminates side loading, ensuring smooth, accurate valve operation and extended service life. Its modular design allows for easy integration with Fisher FIELDVUE™ digital valve controllers, positioners, and other accessories to enhance performance and enable advanced diagnostics. Manufactured from high-quality, corrosion-resistant materials, the Fisher 1052 actuator delivers outstanding durability even in the most demanding environments, including oil and gas, chemical processing, refining, power generation, and marine industries.

Technical Specification of Fisher 1052 Rotary Actuators

Actuation

Spring-return, Quarter-turn, Rotary

Certifications

PED, CUTR, ATEX

Control Type

On/Off, Throttling

Power Source

Pneumatic

Valve Type

Ball Valve, Butterfly Valve, Eccentric Plug Valve, Triple Offset Valve

Other Configurations

Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.

Feature of Fisher 1052 Rotary Actuators

• Available with fail-open or fail-close construction and can be mounted in any of four actuator/valve mounting positions. These actuators can be mounted on a broad range of Fisher valves or used with other equipment.
• Single joint linkage with splined and clamped lever minimizes lost motion and improves control accuracy.
• Rugged construction provides stability, corrosion resistance, and protection from deformation should over-pressurization occur.
• Includes an externally accessible spring adjuster to relieve spring compression. Actuator/valve linkage is completely enclosed, yet the valve packing adjustment remains accessible without removing any parts.
