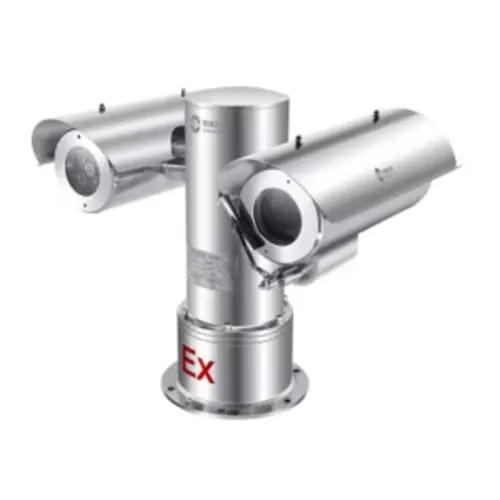

Explosion Proof wide angle high-definition alarm PTZ Camera

Explosion Proof wide angle high-definition alarm PTZ Camera

Functional characteristics

● ATEX IECEx double explosion-proof certification, explosion-proof mark: Ex db IIC T6 Gb / Ex tb IIC T80℃ Db, Ta=-40℃≤Tamb≤+60℃

● uses a high-performance 3-megapixel 1 / 2.8 ” CMOS image sensor with high image definition

● 33 x optical zoom, focal length range: 4.5mm-148.5mm

● starlight class low illumination monitoring, minimum illumination color 0.001lux (F1.5,50IRE), 0lux infrared light on

● uses multi-angle fog surface / bright surface array infrared lamp, low heat energy, low power consumption, irradiation distance up to 100 meters

● supports the detection and capture of faces in designated areas, and enables the statistics of the number of faces to achieve better control of people in and out

● supports cross-border detection, regional invasion, entry / leaving areas, and can distinguish motor vehicles, non-motor vehicles and pedestrians to meet the needs of deployment prevention in complex scenarios

● 120dB wide dynamic, to meet the needs of high-contrast scene monitoring

● supports 2304 * 1296@60fps, and the motion images are smoother

● support H.265 Coding, 3D noise reduction, stabilization, fog transmission, ROI coding and focus, regional privacy occlusion

● 255 preset bits, power off memory, automatic cruise and other functions

● horizontal direction 360° continuous rotation, vertical direction ± 90°, no monitoring blind area

● supports AC85V ~260V wide voltage power supply, with optional DC24V 3A power supply

● intelligent wiper function, wiper using car wiper blade, good weather resistance, easy to change

● turbine worm transmission structure design, precision stepper motor drive, sensitive response, smooth operation

● built-in semiconductor temperature-controlled components for automatic heating and heat dissipation

● the window adopts special explosion-proof glass, and the glass surface is treated by nanotechnology, with high optical pass rate, non-sticky water, non-sticky oil, and dust exclusion

● is made of 304 stainless steel material, suitable for chemical industry, acid and alkali and other strong corrosive environment for use

Use environment

With IIA, B, C combustible gas, zones 1 and 2 of T1-T6, combustible gas or explosive mixture formed by vapor and air are also applicable to zones 21 and 22 of T1-T6, containing combustible dust mixture.Such as: petroleum, chemical, mine, military, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage, etc.

Technical parameter
