EBC Electric Actuator

Description

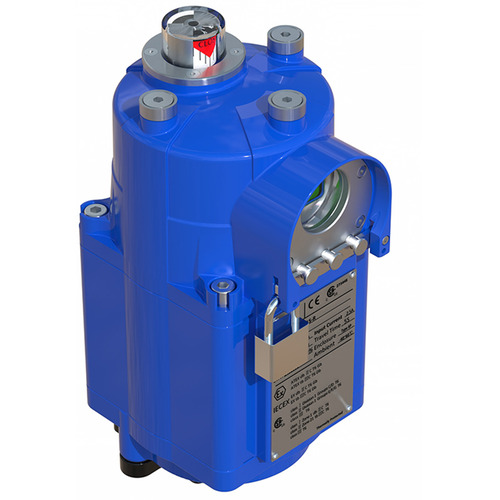

EBC Electric Actuator:

The EBC Electric Actuator is a high-performance valve automation solution equipped with a supercapacitor for safe return to a defined position during power loss. It offers a high torque range, brushless DC motor, and IP68-rated protection, making it ideal for demanding industrial and marine environments. With a corrosion-resistant aluminum alloy build and advanced control features, it delivers reliable operation in harsh conditions.

Key Features of EBC Electric Actuator

• Torque Output: 204 in-lb to 26,552 in-lb (23Nm to 3000Nm).

• Brushless DC Motor: Efficient and durable.

• Voltage Options: 24VDC/AC, 110VAC, 220VAC, 380VAC, 440VAC.

• Duty Cycle: S4 50% (IEC 60034-1).

• Supercapacitor Reset: Automatically resets to open, close, retain, or user-defined position during power-off.

• Ingress Protection: IP68 rated.

• Corrosion Protection: C5 (ISO 12944) — suitable for ocean environments, 5–15 years service life.

• Operating Temperature: -40℃ to 60℃ (-40℉ to 140℉).

• Surface Temperature: ≤ 85℃ (185℉).

• Humidity Tolerance: Up to 95% at 50℃ (122℉).

• Cycle Life: 30,000 cycles (0°→90°→0°).

• Operation Panel Functions:

  • Set open, close, and mid positions

  • Local mode and stop

• Control Signals:

  • On/Off: Standard digital

  • Modulating: Analog (4–20mA, 1–5V, 2–10V input/output)

• Optional Features: Deceleration, timer, sensor data collection

• Vibration Resistance:

  • Train: 5–1200Hz, 1.5g, 24H

  • Road: 5–50Hz, 5g, 5H

  • Earthquake: 10g, 13ms, 125 shocks (each direction)
