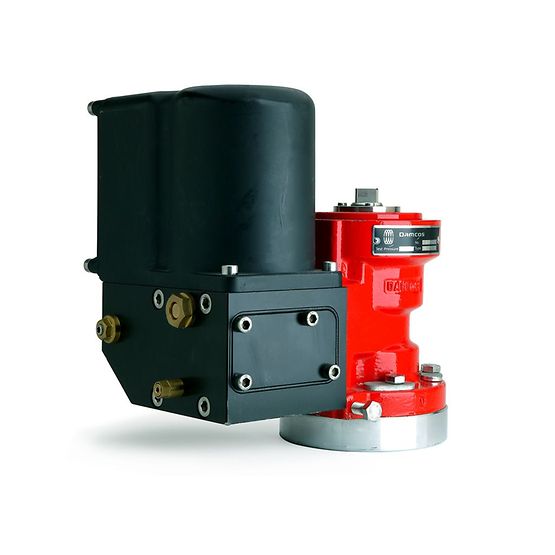

Damcos™ Local Power Unit – LPUM
Get the value of versatility with the Damcos Local Power Unit – LPUM. Built to Integrate with your electro-hydraulic system for remote control of your smaller marine valves and actuators, the LPUM is also rugged and sea worthy. The LPUM is very compact and with an optimized footprint for smaller valves and actuators, however still a variety of control options like P-NET and PD527 is possible. Trust the name that’s been put reliability to the test for over 50 years, that’s Damcos.
The Damcos™ Local Power Unit (LPUM), engineered by Emerson, is a compact, self-contained hydraulic power source designed to provide reliable local control for valve actuators in marine, offshore, and industrial applications. Built for durability and precision, the LPUM delivers efficient hydraulic pressure for the operation of Damcos™ hydraulic actuators, even in remote or independent control scenarios where centralized power systems are unavailable. The LPUM allows operators to locally open, close, or stop valves using a dedicated hand-operated or motor-driven hydraulic pump. Its modular and rugged construction makes it ideal for critical valve control in demanding environments, ensuring safe and dependable performance under extreme conditions. Designed for easy installation, integration, and maintenance, the Damcos™ LPUM is available in several configurations — including manual, pneumatic, or electric-driven options — to meet various operational requirements. It is frequently used as a backup or emergency hydraulic source, ensuring valve functionality during power loss or system failure.
Technical Specification of Damcos™ Local Power Unit – LPUM
- Max. Running Time
- 45sec dependent on the ambient temperature
- Enclosure Rating
- IP68 (3bar in24 hours)
- Ambient Temperature
- -5°C to 55°C
- Weight
- 8.5 Kg
- Tank Volume
- approx. 105mL / 35mL
- Cable Glands
- Standard 1 pc M20 x 1,5 (8-15mm) See product data sheet for more info
- Materials of Construction
- in Aluminium DS4261, AISI 12, anodized
Feature of Damcos™ Local Power Unit – LPUM
- Versatile and economical solution delivering high-end local performance
- Possibility to configure and scale the unit as control requirements demand
- The Damcos LPUM comes in one configuration, but with different control options like Hardwire (terminal) and/or Bus control: Dry –Standard configuration
- Damco LPUM can match smaller Damcos actuators, such as BRC and BRCF up to size 500 and KC and KF/R up to size 125.
- Option for Local LPUM Hand Pump installation
- No loose cables, like position indicator cable or similar
- Robust design and housing built for marine environment
- Easy de-airing and oil filling
- Meets requirements for all major industry classifications
