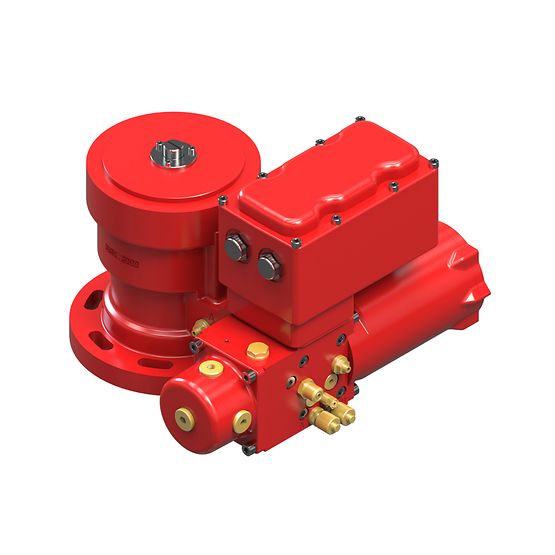

Damcos™ Local Power Unit – LPU
Gain the confidence of proven marine performance with the Damcos Local Power Unit (LPU) for a wide range of remote capabilities. This workhorse is part of our electro-hydraulic system for remote control of valves. The LPU is especially developed for mounting onbulkhead or direct on all Damcos actuators. The rugged and compact design has proven itself reliable on thousands of working vessels and it stands the scrutiny of all marine industry classifications
The Damcos™ Local Power Unit (LPU), engineered by Emerson, is a self-contained hydraulic power system designed to deliver reliable, precise, and independent control of valve actuators and hydraulic systems. Built to provide local operation capability, the LPU is ideal for remote, offshore, and marine applications where a central hydraulic supply is unavailable or impractical. The Damcos LPU supplies hydraulic pressure to Damcos and Bettis actuators and can be configured for on/off, modulating, or fail-safe control. It features integrated control valves, pressure accumulators, filters, and a reservoir, forming a complete, ready-to-install unit. Operators can manage valves locally or remotely, with options for manual, electrical, or automated control. Designed for harsh and hazardous environments, the Damcos Local Power Unit is built with marine-grade materials, IP-rated enclosures, and corrosion-resistant coatings, ensuring long service life, minimal maintenance, and reliable operation in even the most demanding offshore conditions.
Technical Specification of Damcos™ Local Power Unit – LPU
- Max. Running Time
- Up to 10 min. depending on ambient temperature (max. 25% duty cycle)
- Enclosure Rating
- IP 68 – see Product Data Sheet for more detail
- Ambient Temperature
- -5°C to 70°C ( -25°C to 70°C on request)
- Weight
- 18 to 26 Kg depending on type
- Tank Volume
- 120 to 930 mL depending on requirements
- Cable Glands
- 1 to 5 depending on configuration
- Materials of Construction
- GGG40 – for more detail see Product Data Sheet
Feature of Damcos™ Local Power Unit – LPU
- The Damcos™ LPU comes in different configurations as seen below, each of these configurations comes again with different control options like Hardwire (Power) and/or Bus control: 1) Dry – Standard configuration, 2) Deck – Standard configuration, 3) Floodable – Operation down to70m for up to 7 days, 4) EEX – Patented temperature watchdog for hot temperatures
- Option for Local LPU Hand Pump installation
- Damcos LPU can match all Damcos actuators
- Easy de-airing and oil filling
- Adjustable flow 250 – 1000 ml/min.
- Patented automatic pumping reduction reduces energy consumption
- Robust design and housing built for harsh marine operation
- Meets requirements for all major industry classifications
- The LPU is an essential part of the electro-hydraulic Valve Remote Control System
