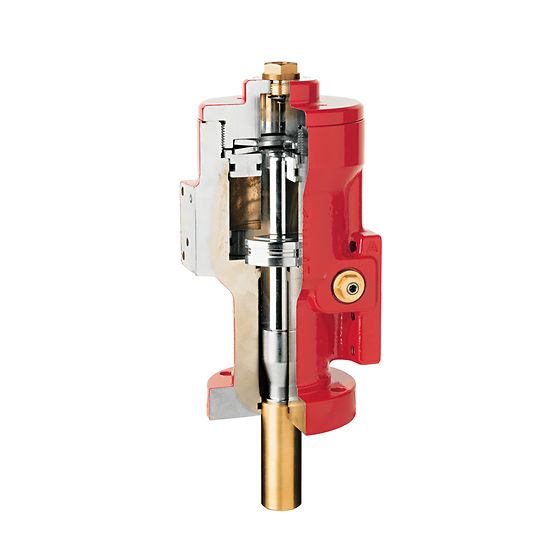

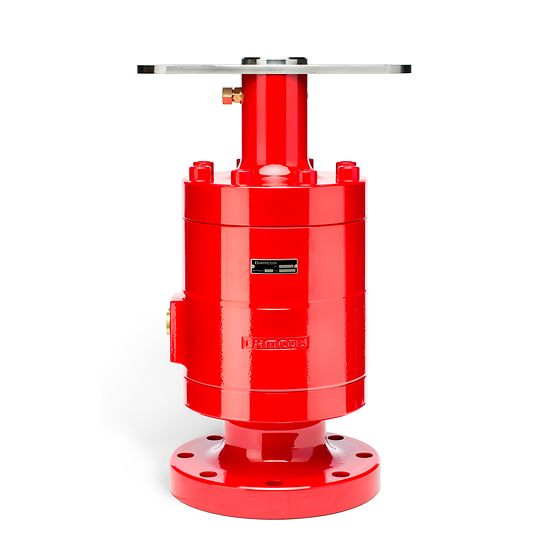

Damcos™ KC Linear Double-Acting Actuator
You’ll attain superior marine globe valve control with the Damcos KC Double -Acting Actuator. Designed for intermediate positions and fail set operation, this actuator converts hydraulic pressure into linear motion with thrust delivered proportional to the applied pressure.The KC has no external moving parts and has a built-in device for maintaining pressure at temperature variations. Designed with a built-in crossover valve and a direct visual position indicator for on-site verification
The Damcos™ KC Linear Double-Acting Actuator, engineered by Emerson, is a robust hydraulic actuator designed to deliver precise and reliable linear valve operation in marine, offshore, and industrial applications. Built for demanding environments, the KC actuator combines high performance, compact design, and long-term durability, ensuring dependable control of critical valve functions. This actuator utilizes a double-acting hydraulic principle, providing controlled power in both opening and closing directions, which ensures fast, accurate, and repeatable valve positioning. The Damcos™ KC series is compatible with a wide range of linear valve types, including gate valves, globe valves, and choke valves, making it a versatile solution for numerous fluid control systems. Engineered for harsh marine and subsea environments, the KC actuator is constructed from corrosion-resistant materials, offering long operational life with minimal maintenance. It can be integrated seamlessly with Damcos™ control systems, Local Power Units (LPUs), and Remote Control Systems, providing full automation and feedback capabilities.
Technical Specification of Damcos™ KC Linear Double-Acting Actuator
- End Closing Thrust
- 17000 to 290000 Nm
- Operating Pressure
- 135 bar
- Test Pressure
- 1,5 times working pressure
- Burst Pressure
- 675 bar
- Ambient Temperature
- -20°C to +80°C
- Weight
- 4.5 to 150 kg
- Oil Displacement
- 0,021 to 3.36 litre
- Hydraulic Media and Viscosities
- Recommend acid-free hydraulic oil
- Viscosity
- 15-200 cSt.
- Housing Material
- GGG40
Feature of Damcos™ KC Linear Double-Acting Actuator
- The KC actuator is perfect for intermediate positions and fail set operation of globe valves
- Unique and simple design with built-in crossover valve
- Easy installation on intermediate flange at globe valve
- Same unit for several valve sizes
- Will operate in sea air as well as sea water
- No external moving parts during operation

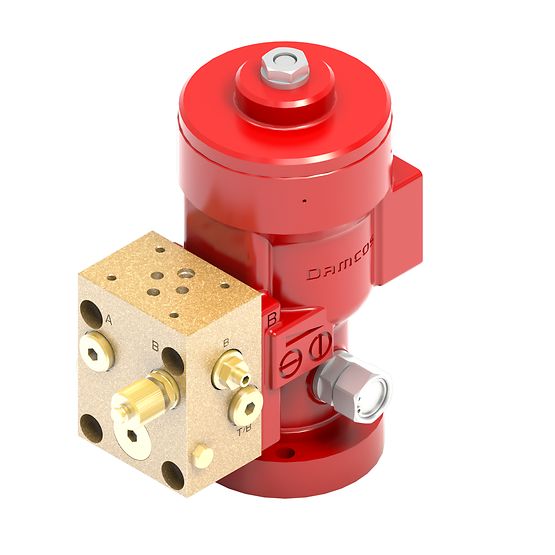

- Prepared for direct built-on modular block functions or LPU
- Direct visual position indication
- Electrical on/off or continuous position/indication
- IP 68
