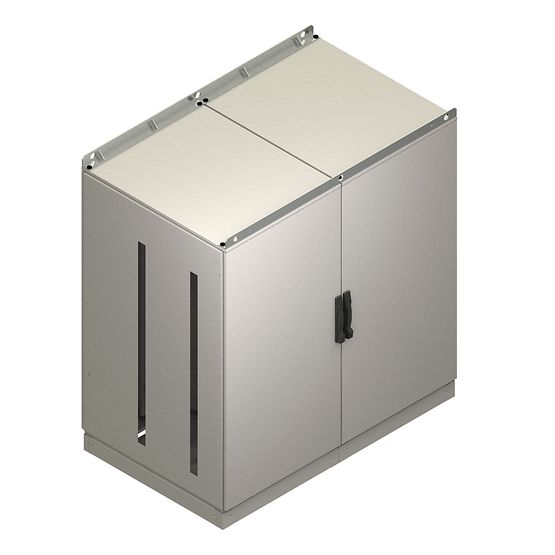

Damcos™ Control Cabinet
Centralizing control of your marine Valve Remote Control system is simple with the Damcos Control Cabinet. Each cabinet holds 1-4 manifold rows and supports up to 120 valves. Each solenoid valve can have remote indication feedback (VPI) and be isolated for reliable emergency operation and easy repairs to reduce your downtime. The cabinet also hosts room for intelligent and standard I/O modules enabling all tank-related functions. With this distributed intelligence, response time is optimized.
The Damcos™ Control Cabinet, developed by Emerson, is a high-performance hydraulic and electro-hydraulic control unit designed for precise and reliable operation of valve actuators and automation systems. It serves as the central command interface for controlling multiple Damcos™ actuators, including hydraulic, electro-hydraulic, and spring-return models, across marine and offshore installations. Engineered for robust performance in harsh environments, the Damcos™ Control Cabinet provides manual, remote, or automatic valve control, offering flexibility and safety in critical operations. The cabinet integrates pressure control valves, accumulators, filters, solenoid valves, and monitoring instruments, ensuring consistent performance and easy system management. Constructed with marine-grade stainless steel and built to IP-rated enclosures, the control cabinet withstands vibration, humidity, and corrosive atmospheres typical of offshore platforms, vessels, and refineries. Its modular design allows for customized configurations tailored to the specific process, system layout, and actuator requirements.
Technical Specification of Damcos™ Control Cabinet
- Connection Type(s)
- Pipe Connection input: P & T Cabinet connection 3/8 Inch BSP
Pipe Connection output: A & B Manifold connection 1/4 Inch BSP
- Dimensions
- S-xx 768 x (576 to 1920) x 384mmD-xx/EL 1152/1920 x (1344 to 1920) x 384mm Q-xx/EL 1536/1920 x (1152 to 1920) x 960mm
- Materials of Construction
- Steel frame and sheet 2 and 3mm
- Weight
- See specific product data sheet
- Product Program
- Cabinet program from 4 to 120 Controls divided in single, double and quadruple type
Feature of Damcos™ Control Cabinet
- Robust design based on modular manifold stations, steel frames and manifold support plate.
- Providing control/isolation and regulation capabilities
- Communication to Integrated Control and Monitoring System
- The cabinet is a vital part of the Emerson Valve Remote Control System
- Cetop-3 manifold available in aluminum, brass and stainless and prepared for control, feedback and compensation blocks
- Screw diver locks in front doors. (On request DIN locks.)
- Low leakage solenoid valve (less than 10cc/min)
- Throttle/stop valves on each station
- System bleed valve on each manifold row for easy de-airing
- Hand pump connections for easy emergency operation
- Option for oil filtration and pressure meter at each manifold
- Engineered for the harsh conditions of sea environments and backed by a worldwide service network
