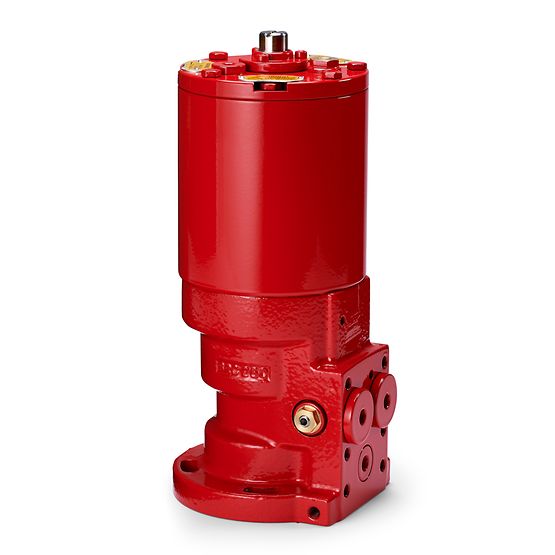

Damcos™ BRCF Single-Acting Spring Return Actuator
Get the assurance of fail-safe marine performance without taking up extra space or weight. The compact design of the Damcos BRCF Single-Acting Spring Return Actuator is the choice for both fail-open and fail-close performance. With no radial forces on the valve, you can count on long-term performance with minimal maintenance. Trust the design with three decades of documented reliability.
The Damcos™ BRCF Single-Acting Spring Return Actuator, developed by Emerson, is a robust and reliable linear hydraulic actuator designed to deliver precise and fail-safe valve control in demanding marine, offshore, and industrial applications. This single-acting spring-return actuator uses hydraulic pressure for valve operation and a powerful mechanical spring to automatically return the valve to its fail-safe position upon loss of pressure. This ensures immediate and safe shutdown of the process line, providing critical safety and reliability in emergency conditions. Built to withstand harsh marine environments, the BRCF actuator features corrosion-resistant materials, compact construction, and high mechanical efficiency, making it ideal for ball valves, gate valves, and other quarter-turn valve operations where reliability and safety are paramount.
Technical Specification of Damcos™ BRCF Single-Acting Spring Return Actuator
- Burst Pressure
- 675 bar
- Ambient Temperature
- -20°C to +80°C
- Weight
- 8.6 to 441 kg.
- Oil Displacement
- 0.026 to 6.1 litre
- Rotation
- 90° ±1°
- Hydraulic Media and Viscosities
- Recommend acid-free hydraulic oil
- Viscosity
- 15-200 cSt.
- Housing Material
- GGG40
Feature of Damcos™ BRCF Single-Acting Spring Return Actuator
- Unique yet simple design has long tradition of marine reliability
- Compact footprint and high-torque output
- A proven performer with more than 30 years of service records on basic design
- Balanced rotary principle eliminates side forces and/or bending of valve spindle
- Easily adapts to marine-industry standardized quarter-turn valves
- Design allows for unlimited mounting positions
- Built-in adjustments for end stops of rotary movement
- Prepared for direct built-on modular control functions
- Meets requirements for all major industry classifications
- Actuators and accessories can be disassembled in to parts which are 98% recyclable
- Part of the Emerson Valve Remote Control System
