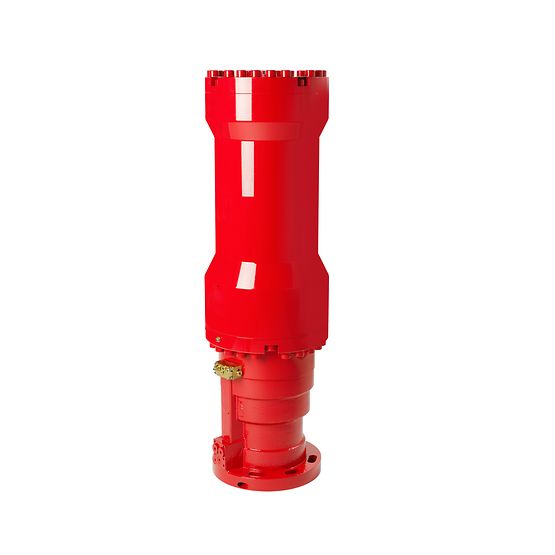

Damcos™ BRCF HT Single-Acting Actuator
The unique and patented design of the Damcos BRCF HT actuator offer high torque for your most demanding marine valve needs. It is our smallest and most powerful single-acting actuator designed to meet the requirements of large valves and valves requiring high torque in a small footprint. The torque range is from 4000 to 16000 Nm. The Damcos BRCF HT series is designed for all vessels and offshore applications and covers the sizes 4000, 8000 and 16000 HT
The Damcos™ BRCF HT Single-Acting Actuator, developed by Emerson, is a heavy-duty hydraulic spring-return actuator designed to deliver high-torque, fail-safe valve operation in demanding marine, offshore, and industrial environments. Built on the proven BRCF actuator platform, the BRCF HT (High Torque) model provides enhanced torque output while maintaining compact dimensions and reliable performance. The actuator uses hydraulic pressure for valve opening and an integrated heavy-duty spring to automatically return the valve to its fail-safe position during pressure loss — ensuring safe and controlled shutdown of critical flow systems. Engineered for precision control and maximum durability, the BRCF HT actuator is ideal for operating ball valves, butterfly valves, and other quarter-turn valve types in applications that require fail-safe operation under extreme pressure or temperature conditions.
Technical Specification of Damcos™ BRCF HT Single-Acting Actuator
- Burst Pressure
- 675 bar
- Ambient Temperature
- -20°C to +80°C
- Weight
- 235 to 667 kg
- Oil Displacement
- 2.4 to 8.4 litre
- Rotation
- 90° ±1°
- Hydraulic Media and Viscosities
- Recommend acid-free hydraulic oil
- Viscosity
- 15-200 cSt.
- Housing Material
- GGG40
Feature of Damcos™ BRCF HT Single-Acting Actuator
- Unique and simple patented design with cross-over valve
- Dished springs action design
- Easy adaption to all industry standard quarter-turn valves
- Reliable and rugged, with more than 30 years service records on basic design
- Compact with high-torque output
- Engineered to withstand the rigors of sea life by marine specialists
- Unlimited mounting positions and with built-in adjustments for end stops of rotary movement
- Balanced rotary principle eliminates side forces and bending of valve shaft
- Actuators and accessories can be disassembled in to parts which are 98% recyclable
- Design and manufacturing process comply with ISO9001 quality standards and ISO14001 environmental code
- Part of the Emerson Valve Remote Control System
