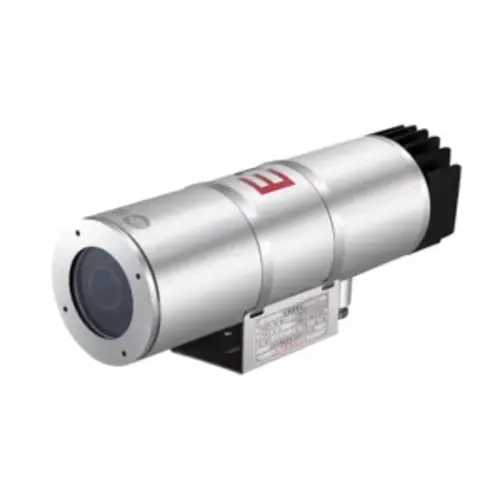

Description
Functional characteristics
● double explosion-proof certification, explosion-proof mark: Ex d IIC T6 Gb / Ex tD A21 IP68 T80℃
● uses a high-performance 3-megapixel 1 / 2.8 ” CMOS image sensor with high image definition
● has a 22 x optical doubling and a 5.2mm-114.4mm focal length
● starlight low light monitoring, 0.002lux (F1.5,50IRE), 0.001lux (F1.5,50IRE)
● supports the detection and capture of the faces in the designated areas, and enables the statistics of the number of faces to achieve better control of the entry and exit personnel
● supports cross-border detection, regional invasion, entering / leaving areas, and can distinguish between motor vehicles, non-motor vehicles and pedestrians to meet the needs of deployment prevention in complex scenarios
● supports 3D noise reduction, 120dB wide dynamics, to meet the needs of high-contrast scene monitoring
● supports 2304 * 1296@30fps, giving the picture a smooth motion image
● supports the advanced H.265 encoding algorithm, encoding compression is more efficient
● built-in semiconductor temperature-controlled components for automatic heating and heat dissipation
● ambient temperature range: -45℃ to + 100℃ for long, uninterrupted and stable work periods
● the window adopts special explosion-proof glass. The glass surface is treated by nanotechnology, with high optical pass rate, non-adhesive water, non-sticky oil and dust exclusion
● is made of 304 stainless steel, suitable for chemical industry, acid and alkali and other strong corrosive environments
Use environment
1. It has class IIa, IIb and IIC combustible gases, and the ignition temperature group is zone 1 and zone 2 of T1-T6 group. Places where combustible gases or vapors form explosive mixtures with air,
2. It is also applicable to areas 21 and 22 with ignition temperature group T1-T6 and places containing combustible dust mixture.
Such as: petroleum, chemical industry, mine, military industry, medicine, oil depot, ship, drilling platform, gas station, fireworks production, grain processing and storage, etc.
Technical parameter
| product model |
HB-602-F 6322 |
| explosion-proof sign |
Ex d IIC T6 Gb/Ex tD A21 IP68 T80℃ |
| levels of protection |
IP68 |
| imaging sensor |
A 1 / 2.8-inch CMOS |
| Effective pixel |
Three million |
| Focal distance / double |
Electric zoom, 5.2~114.4mm, 22 x optical doubling |
| The type of zoom |
Electric zoom, automatic focus |
| iris diaphragm |
Automatic / manual, aperture scope: F1.5 (W) ~F3.8 (T) |
| shutter |
Automatic / manual, shutter range: 1~1 / 100,000s |
| minimal illumination |
0.002lux (F1.5,50IRE, Color); 0.001lux (F1.5,50IRE, Black and white) |
| Switch day and night |
Automatic infrared filter switch |
| noise-signal ratio |
>52dB |
| wide dynamic range |
120dB |
| 3D, noise reduction |
support |
| Through the fog |
Adaptive fog |
| white balance |
Automatic / Manual / Tracking / Outdoor / Indoor / Outdoor Automatic / sodium lamp Automatic / Sodium lamp |
| Backlight compensation |
support |
| Strong light inhibition |
support |
| Coding protocol |
H.265、H.264、MJPEG |
| Coding system |
3MP (2304 * 1296), with 30 frames / s support |
| Main code flow |
2304*1296，1920*1080，1280*720，720*576（D1），640*360 |
| Auxiliary code flow |
1280*720，720*576（D1），640*360 |
| The third stream |
720*576（D1），640*360，704*288（2CIF），352*288（CIF） |
| Video code rate |
128Kbps~16Mbps |
| OSD |
Time, doubling, preset position, serial port OSD, azimuth information, number statistics, network port OSD, picture OSD, environmental volume, latitude and longitude coordinates |
| Privacy cover |
Black style: display up to 8 in a single scene |
| screenshot |
Support regular grasp map, periodic grasp map, cruise preset bit grasp map |
| Audio encoding format |
G.711u、G.711A、AAC-LC |
| Audio sampling rate |
G.711u、G.711A：8KHz；AAC-LC：8KHz、16KHz、48KHz |
| Front end storage |
Support for Micro SD storage, up to 256GB |
| Back-end storage |
Two-way iSCSI data block direct storage |
| Perimeter defense |
Transboundary detection, regional invasion, entry area and leaving area;
We will support the targeted classification, detection, capture, and prevention of motor vehicles, non-motor vehicles, and pedestrians |
| Face detection |
Up to 8 individual face targets can be detected simultaneously;
Support effect first, speed first, cycle preferred three face capture preferred mode, support face angle filtering |
| common event |
Motion detection, occlusion detection, sound detection, alarm input, alarm output |
| networking protocol |
L2TP、IPv4、IGMP、ICMP、ARP、TCP、UDP、DHCP、RTP、RTSP、DNS、DDNS、
NTP、FTP、UPnP、HTTP、SNMP、SIP |
| compatibility |
ONVIF2.4, GB / T28181, and ATV protocol |
| browser |
Support for IE7 and above versions (including IE7) Google, Firefox, Apple and other non-IE visitors |
| safe mode |
Authorized user name and password, and MAC address binding; HTTPS encryption; IEEE 802.1x network access control (whitelist) |
| user management |
Multi-level user rights management |
| Audio interface |
1 In-1 Out (optional) |
| Alarm interface |
1 In-1 Out (optional) |
| network interface |
Built-in RJ45 network port, which supports 10M / 100M network data |
| Automatic temperature control |
Built-in semiconductor temperature control components to achieve automatic heating and heat dissipation functions |
| temperature range |
-45℃ to + 100℃ for long uninterrupted stable work |
| power supply mode |
DC 12V |
| Product material |
304 Stainless steel material |
| Input hole specification |
2 G3 / 4 ” incoming line holes |
| way to install |
Multiple installation methods can be selected based on the application environment |
| Product weight |
≤6kg |
