Cryogenic Ball Valve

Cryogenic Ball Valve

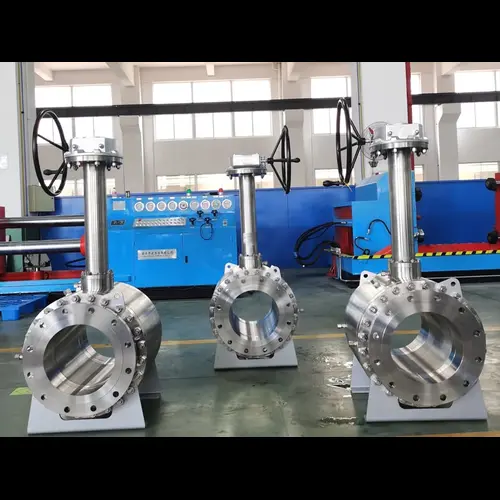

Cryogenic Ball Valves are engineered specifically for extremely low-temperature applications, including LNG and cryogenic gas processing systems. Designed with an integral bonnet extension, these valves prevent cryogenic liquids from reaching the stem packing, allowing the liquid to vaporize safely before it can affect the valve’s moving parts. This feature minimizes energy loss and protects the valve from malfunction due to thermal stress.

Built to meet BS 6364, MESC 77/200, ISO 28921-1, and customer-specific requirements, these valves maintain tight shut-off performance and structural integrity under the severe thermal fluctuations typical in cryogenic service. The robust design also ensures minimal thermal deformation of internal components, making them ideal for critical LNG field operations.

Key Features

• Design Standards: BS 6364, MESC 77/200, ISO 28921-1, and customer specs

• Temperature Range: -320 to 212°F (-196 to 120°C)

• Size Range: NPS 1 to 30 (DN 25–750)

• Pressure Rating: ASME 150 – ASME 900

• End Connections: RF, RTJ (per ASME B16.5 & B16.47), BW (per ASME B16.25)

• Bonnet Design: Extended bonnet to protect stem from cryogenic liquids

• Thermal Protection: Reduces risk of thermal deformation

• Application-Specific: Built for LNG, cryogenic storage, and gas transport systems

Applications

• LNG production and transport

• Cryogenic gas processing plants

• Storage tanks and vaporizer systems

• Low-temperature gas pipelines

• Petrochemical applications requiring sub-zero service
