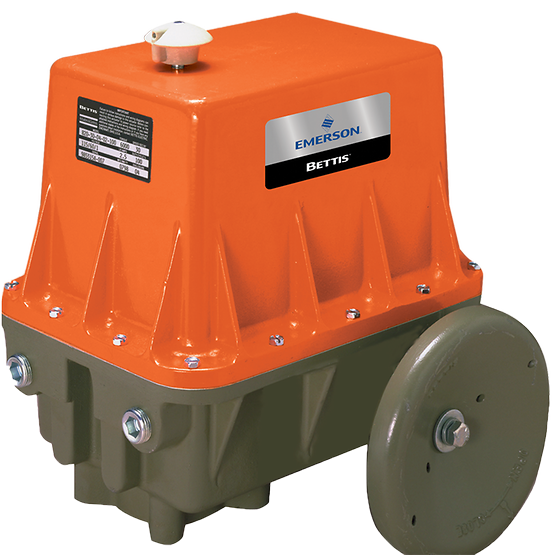

Bettis TorqPlus Electric Valve Actuator

The Bettis TorqPlus Electric Valve Actuator is a compact, reliable, and intelligent electric actuator designed to deliver precise control and dependable torque output for quarter-turn valves, including ball, butterfly, and plug valves. Manufactured by Emerson, the Bettis TorqPlus series combines robust mechanical engineering with advanced electronic control technology, providing superior performance in both on/off and modulating valve automation applications. This actuator features a precision-machined gear system that ensures smooth, efficient torque transmission and long-term reliability. Its integrated electronic controls offer advanced functionality such as position feedback, torque sensing, programmable control logic, and local/remote operation modes, making it ideal for modern process control systems. Designed for versatility, the Bettis TorqPlus actuator operates on standard AC or DC power supplies and supports a wide range of communication protocols, including Modbus, HART, and Foundation Fieldbus, depending on configuration. The weatherproof and corrosion-resistant enclosure provides protection for both indoor and outdoor environments, meeting NEMA and IP protection standards. Built for ease of installation and maintenance, the TorqPlus actuator features modular electronics, manual override capability, and direct ISO 5211 mounting interfaces, allowing easy integration with valve assemblies and control systems. It’s a cost-effective, energy-efficient alternative to pneumatic and hydraulic systems—perfect for facilities seeking to electrify their valve automation infrastructure.

Technical Specification of Bettis TorqPlus Electric Valve Actuator

Power Source

Electric

Product Type

Electric Actuator

Actuation

Electric

Certifications

CSA, NEMA

Control Type

On/off, Positioning, Throttling

Valve Type

Ball, Butterfly, Plug, Choke

Torque/Thrust

Quarter-turn torque: 11 Nm (8 ft lbs) to 2,260 Nm (1,667 ft lbs)

Feature of Bettis TorqPlus Electric Valve Actuator

• Five models with output torques ranging from 100 in-lbs-in to 20,000 in-lbs-in (11 Nm to 2,260Nm)
• Standard for torques as low as 350 lbs-in through 10,000 lbs-in torques is 100% (none less than 50% in all available motor voltages)
• Compact design in weatherproof and explosion-proof housings
• Modular design readily accommodates controls and accessories such as heaters, motor brakes, positioners, transmitters and control stations
• Permanent lubrication reduces the need for scheduled maintenance
• High strength gearing run in needle bearings for smooth energy transfer and long service life
