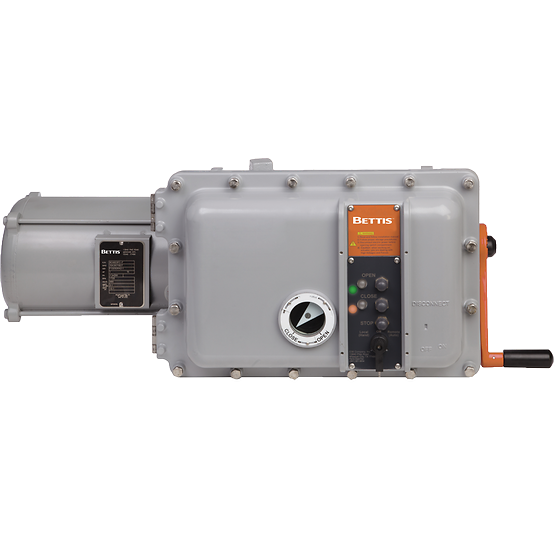

Bettis M2CP Electric Valve Actuator
The Bettis™ M2CP Electric Valve Actuator by Emerson delivers precise, intelligent valve automation with robust construction, advanced electronic controls, and compatibility for both quarter-turn and multi-turn valve applications.
The Bettis™ M2CP Electric Valve Actuator, developed by Emerson, is a durable, intelligent, and versatile electric actuator designed for precise, automated valve control in a wide range of industrial, marine, and power applications. The M2CP actuator combines robust mechanical engineering with advanced electronic control technology, offering accurate torque output, smooth operation, and reliable performance in demanding service conditions. It is suitable for quarter-turn and multi-turn valve types, including ball, butterfly, and plug valves, making it one of the most flexible electric actuators in the Bettis lineup. The modular design of the M2CP actuator allows easy integration with digital control systems, network communication protocols (Modbus, Profibus, Foundation Fieldbus), and manual override mechanisms, ensuring adaptability to both new installations and retrofits. Built with weatherproof and explosion-proof housings, the M2CP actuator delivers long-term reliability in harsh environments, from refineries and chemical plants to offshore platforms and water treatment facilities
Technical Specification of Bettis M2CP Electric Valve Actuator
- Power Source
- Electric
- Product Type
- Electric Actuator
- Actuation
- Electric
- Certifications
- FM, CSA, ATEX, IECEx, TRCU, InMetro, RMRS, ABS, UL
- Control Type
- On/off, Positioning, Throttling, Modulating
- Valve Type
- Gate, Globe, Ball, Butterfly, Plug, Triple Offset, Check, Stop-Check, Angle-Check, Sluice Gates, Weir Gates, Multi-turn Damper Drives
- Torque/Thrust
- Multi-turn torque: up to 21,693 Nm (16,000 ft lbs)Quarter-turn torque: up to 370,000 Nm (273,000 ft lbs)Linear force up to 2,224 KN (500,000 lbs)Models
Feature of Bettis M2CP Electric Valve Actuator
- Fits broad range of quarter-turn and multi-turn applications – wide range of frame sizes, horsepower ratings, and output speeds
- Easy maintenance – M2CP control package can be removed, assembled, disassembled, and replaced using only a standard screwdriver
- Motor options include most voltages of single-phase or three-phase alternating current and direct current
- Meets US DOD Navy StandardsDOD-V-24657(SH) high shock and (MIL-STD-167-1, MIL-STD-901D) mechanical vibrations of shipboard equipment
- Power shift clutch requires minimal force to operate even when valve is tightly seated |Clutch handle can be padlocked in either hand or motor position to prevent unauthorized use |Handwheel shaft is supported by bearings and splined at both ends to eliminate keys
- Motors employ a minimum number of mounting configurations to maximize interchangeability |The motor and spur gear set form a modular unit that is mounted with only eight accessible fasteners |Wide range of motor-reduction spur gear selections offer multiple speed and torque output combinations
- Thermal overload protection |Thermal contacts sense winding temperature and break the control circuit before damage occurs |Standard motors, supplied with thermal overload protection may be disabled for emergency shutdown installations
- Includes an auxiliary clutch handle for emergency use |The clutch operates on the low torque side of the worm and worm gear drive train, and requires minimal force to operate |The valve, gate or damper is never disconnected from the self-locking worm gear
- Incorporates a heat-treated alloy steel worm, as well as a cast-bronze worm gear drive sleeve, supported by tapered roller bearings to maximize thrust load support
