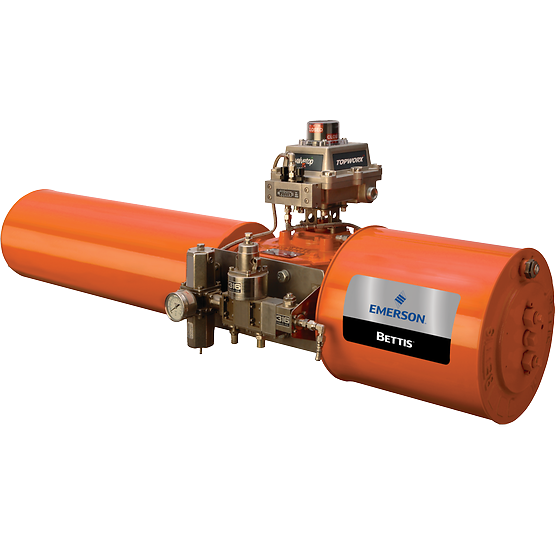

Bettis G-Series Pneumatic Valve Actuator
The Bettis G-Series Pneumatic Valve Actuator, scotch yoke, valve actuator is a highly unique and reliable actuator for operating ball, butterfly or plug valves along with louvers, dampers and other 90 degree rotating mechanisms. Suitable for use in demanding SIL-required applications.
The Bettis G-Series Pneumatic Valve Actuator is a high-performance, rack and pinion–type actuator designed for precise, reliable control of quarter-turn valves such as ball, butterfly, and plug valves in industrial automation systems. Built for durability and efficiency, the G-Series provides smooth, consistent torque output and long service life, even in demanding environments such as oil and gas, petrochemical, power generation, and marine applications. This actuator series features a compact, lightweight design that ensures easy installation and maintenance. Its modular construction allows for flexible mounting options and seamless integration with a wide range of control accessories, including limit switches, positioners, and solenoid valves. Constructed from corrosion-resistant aluminum alloy with a hard anodized body and epoxy-coated end caps, the G-Series ensures excellent protection against harsh environmental conditions. The dual rack-and-pinion design ensures balanced torque output and eliminates side loading on the actuator shaft, improving valve stem life and operational accuracy. With both double-acting and spring-return configurations, the Bettis G-Series offers optimal control for fail-safe operation, ensuring reliable valve closure or opening during power or air loss. The actuator’s ISO 5211 mounting interface and NAMUR accessory mounting make it compatible with a wide variety of valve and accessory manufacturers.
Feature of Bettis G-Series Pneumatic Valve Actuator
- Consistently operates in challenging environments, hostile environments, and when power is challenged
- Modular design improves efficiency reduces wear extends life
- Tension-Lok™ device positively locks the spring module to allow its safe removal and installation, eliminating accidental release of the spring force
- PED 2014/68/EU compliant to meet the stringent requirements of pressure mounting vessels
- Meets both IP66 and IP67M specifications for submergence and high pressure water deluge test and offers superior water ingress and corrosion protection
- Offers multiple configurations, with a modular design that enables safe field maintenance and reduced inventory costs
- Interchangeable power and spring modules for quick reversal of the fail-safe mode
- Suitable for use in demanding applications requiring SIL environment
Technical Specification of Bettis G-Series Pneumatic Valve Actuator
- Power Source
- Pneumatic
- Product Type
- Pneumatic Actuator
- Actuation
- Fail-Safe, Quarter-turn, Spring-Return, Double-Acting
- Certifications
- ATEX, PED, (CE), SIL capable, NACE,TRCU/EAC/GOST, SHELL DEP, ABS
- Control Type
- On/off
- Valve Type
- Ball, Butterfly, Plug, Triple Offset Valves, Other Quarter-Turn Devices
- Operating Temperature
- Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C)
- Torque/Thrust
- Spring-return models in excess of 3,000,000 lbs-in (339,000 Nm), Double-acting 12,581 – 6,000,000 lbs-in (1420 – 678,000 Nm)
- Operating Pressure
- Up to 220 psig (14 Bar)
- Operating Pressure
- Pneumatic 40-220 psig (3-14 Bar), Hydraulic up to 5,000 psig (345 Bar)
