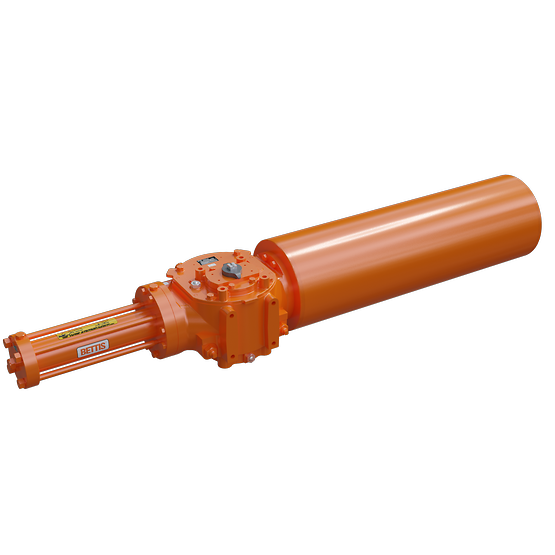

Bettis G-Series Hydraulic Valve Actuator

The Bettis™ G-Series Hydraulic Valve Actuator, engineered by Emerson, is a rugged and reliable scotch yoke actuator designed to provide high-performance hydraulic operation for quarter-turn valves used in the oil and gas, petrochemical, marine, and power industries. Built for precise torque control and dependable valve automation, the G-Series actuator utilizes the proven scotch yoke mechanism, which efficiently converts linear piston motion into rotary output. This design delivers high torque at both ends of the stroke, making it ideal for ball, butterfly, and plug valves that require smooth, controlled movement under high-pressure conditions. The hydraulic-powered G-Series actuator ensures reliable operation even in remote or hazardous environments where electric or pneumatic power may be unsuitable. With its robust construction, corrosion-resistant materials, and modular design, it offers long-term performance with minimal maintenance

Technical Specification of Bettis G-Series Hydraulic Valve Actuator

Power Source

Hydraulic

Product Type

Hydraulic Actuator

Actuation

Fail-Safe, Quarter-turn, Spring-Return, Double-Acting

Certifications

ATEX, PED, (CE), SIL capable,TRCU/EAC/GOST, ABS

Control Type

On/off

Valve Type

Ball, Butterfly, Plug, Triple Offset Valves, Other Quarter-Turn Devices

Operating Temperature

Standard range: -20°F to +200°F (-29°C to +93°C). Optional range: to -40°F (-40°C) or to +350°F (+177°C)

Torque/Thrust

Spring-return models in excess of 3,000,000 lbs-in (339,000 Nm), Double-acting 12,581 – 6,000,000 lbs-in (1420 – 678,000 Nm)

Operating Pressure

Up to 5,000 psig (345 bar)

Operating Pressure

up to 5,000 psig (345 bar)

Feature of Bettis G-Series Hydraulic Valve Actuator

• Consistently operates in challenging environments, hostile environments, and when power is challenged
• Modular design improves efficiency reduces wear extends life
• Tension-Lok™ device positively locks the spring module to allow its safe removal and installation, eliminating accidental release of the spring force
• PED 97/23/EC compliant to meet the stringent requirements of pressure mounting vessels
• Meets both IP66 and IP67M specifications for submergence and high pressure water deluge test and offers superior water ingress and corrosion protection
• Offers multiple configurations, with a modular design that enables safe field maintenance and reduced inventory costs
• Interchangeable power and spring modules for quick reversal of the fail-safe mode
• Suitable for use in demanding applications requiring SIL environment
