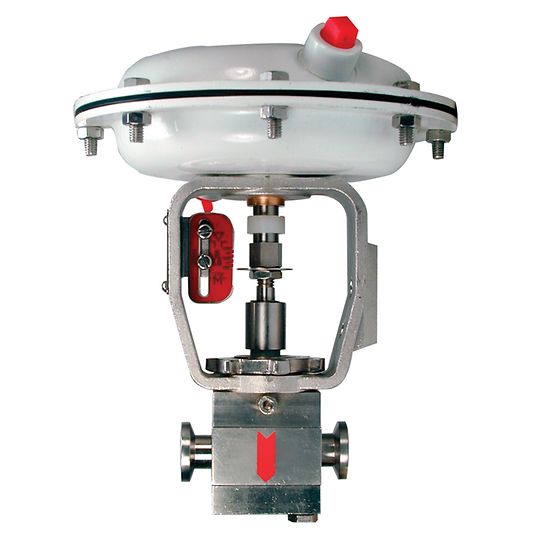

Baumann™ 87000 Flexsleev Sanitary Control Valve
The Baumann™ 87000 Flexsleev™ Sanitary Control Valve by Emerson is a hygienic, elastomer-sleeved valve designed for precise, contamination-free flow control in pharmaceutical, biotech, and food industries. Featuring a corrosion-resistant, crevice-free design that meets 3A and ASME BPE standards, it ensures reliable, clean operation for CIP/SIP systems.
The Baumann™ 87000 Flexsleev™ Sanitary Control Valve, engineered by Emerson, is a high-performance, elastomer-sleeved control valve specifically designed for clean, sanitary, and hygienic process applications. Built for industries where cleanliness and precise control are critical—such as pharmaceutical, biotechnology, food and beverage, and personal care manufacturing—this valve ensures contamination-free operation, exceptional flow control, and reliable shutoff performance. The Flexsleev™ design features a flexible elastomer sleeve that acts as both the valve body liner and seating element, providing a bubble-tight seal and corrosion-resistant barrier between the process media and the valve body. This eliminates the need for traditional packing, minimizing potential leak points and simplifying maintenance. Engineered with a polished stainless-steel body and crevice-free internal design, the Baumann 87000 meets 3A sanitary standards and ASME BPE requirements for clean service. It is ideal for CIP (Clean-in-Place) and SIP (Steam-in-Place) systems, ensuring optimal hygiene and compliance with strict regulatory standards. When paired with a Fisher™ pneumatic or electric actuator and FIELDVUE™ digital positioner, the 87000 valve delivers precise throttling, automated control, and real-time diagnostics for high-performance process optimization.
Technical Specification of Baumann™ 87000 Flexsleev Sanitary Control Valve
- Certifications
- CRN, CUTR, PED
- Critical Service
- Low Flow, General Service, Sanitary
- Flow Characteristics
- Special Characterizations, Modified Equal Percentage
- Material
- Stainless
- Operating Temperature
- Standard Temperature, High Temperature
- Pressure Class
- 150 psi
- Process Connection Type
- Tri-Clamp
- Shutoff Class
- Class VI (FCI 70-2)
- Valve Size
- NPS 1/2
- Valve Size Standard
- NPS, DN
- Other Configurations
- Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product.
Feature of Baumann™ 87000 Flexsleev Sanitary Control Valve
- Unique flow pattern allows for self draining in both vertical and horizontal pipelines.
- Streamlined low shear flow contours make it ideal for sensitive biomedia.
- Flow area between tubing O.D. and body seating is suitable for fine particulant media.
- Bolting method assists with ease of body disassembly and reassembly.
- Epoxy powder-coated actuator with stainless steel yoke and fasteners for maximum corrosion resistance.
