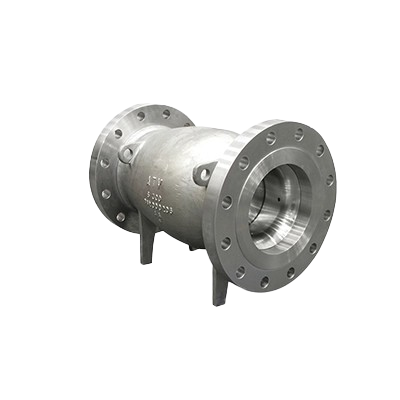

Axial Nozzle Check Valves
Fast-response, compact subsea axial nozzle check valve offering non-slam protection and high flow efficiency.
The ATV Subsea Axial Nozzle Check Valve is a high-performance, non-slam, fast-acting check valve designed for subsea applications. With a compact axial flow design, it provides precise flow control and reliable reverse-flow protection, making it ideal for harsh and dynamic offshore environments. The valve features a spring-assisted disc and a metal‑to‑metal sealing surface, with corrosion-resistant overlays (CRA) on critical wetted areas. It is engineered to meet rigorous subsea design standards, ensuring robust operation in high-pressure and deepwater conditions. Its long design life and maintenance-free construction contribute to reduced operational risk and cost over the asset’s lifetime.
Main Features
- One piece
- Spring-Assisted disc
- Metal-to-Metal
- CRA overlay on sealing areas or all wetted parts
- Design validation to API 17D / API 6A or API 6DSS
- Field-Proven technology up to TRL7
- Long design life, maintenance free
Options
- Customized size and design pressure according to Project requirements
- Client specific Type Approval or Design Validation test
- PED
- Welded pups or transition pieces
- Painting according to Customer Specification
Benefit
- Compact design
- Non-slam fast response
- High Cv
Technical Data
QL1 or QL2
PSL-3, PSL-4
Main Components:
- Carbon Steel or Low Alloy Steel
- Stainless Steel
- Duplex and Superduplex Stainless Steel
- Nickel Alloys
NACE material available upon request
Norsok material available upon request
