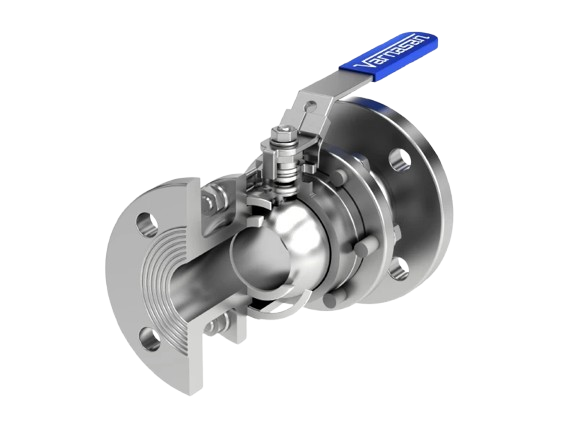

ANSI Class Stainless Steel Ball Valves

ANSI Class Stainless Steel Ball Valves are high-performance industrial valves designed for reliable flow control in demanding applications. Manufactured from AISI 304 or AISI 316 stainless steel, these valves provide excellent resistance to corrosion, chemicals, and aggressive media. Built in accordance with ASME/ANSI standards, they are available in Class 150 and Class 300 pressure ratings, ensuring safe and efficient operation across a wide range of industrial systems.

These ball valves operate effectively within a temperature range of -30 °C to +180 °C, making them suitable for chemical processing, food and beverage, pharmaceutical, oil and gas, and general industrial pipelines. Certified to multiple international quality and safety standards, ANSI Class Stainless Steel Ball Valves deliver durability, precision sealing, and long service life with minimal maintenance requirements.

Features (List)

• High-grade stainless steel construction for superior corrosion resistance

• Compliant with ANSI and ASME international standards

• Available in multiple pressure classes for flexible system design

• Wide temperature tolerance for diverse industrial applications

• Certified for safety-critical and hazardous environments

• Durable sealing system for long-term leak-free performance

• Low maintenance design with extended service life

Technical Specifications (List)

• Design Standard: ASME B16.10

• Pressure Rating: ANSI Class 150, ANSI Class 300

• Operating Temperature: -30 °C to +180 °C

• Body Material: AISI 304 or AISI 316 Stainless Steel

• Connection Type: ANSI flanged ends

• Certifications: CE, ATEX, Fire Safe, ISO 9001:2015, SIL3, Material Test Certification EN 10204 3.1

• Applications: Chemical, pharmaceutical, food and beverage, oil and gas, industrial piping systems

• Operation: Manual or actuator-ready

• Sealing Performance: Tight shut-off with reliable leakage control

• Corrosion Resistance: Excellent, suitable for aggressive fluids
