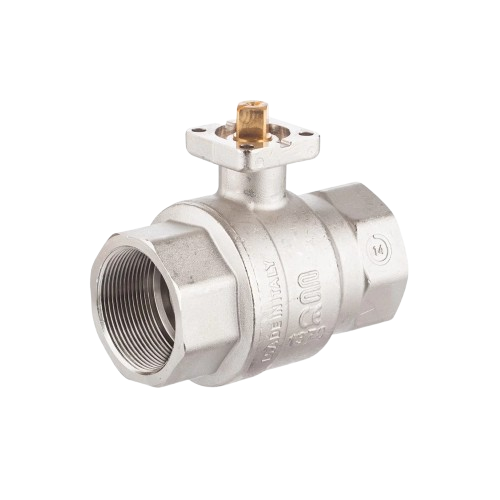

901 Series Brass Ball Valve

The Varnasan 901 Series Brass Ball Valve is a durable, high-performance shut-off valve designed for reliable fluid control in residential, commercial, and industrial systems. It features a full-bore, two-way design that allows unrestricted flow and efficient operation. The forged brass body with nickel plating provides excellent resistance to corrosion and wear, ensuring long-term durability even in demanding environments.

This valve is equipped with PTFE seals around the ball and stem, offering superior sealing performance and preventing leaks. It is suitable for a wide range of media including hot and cold water, air, oil, gas, and other non-aggressive fluids. With a working temperature range from -20°C to +130°C and pressure ratings of up to 40 bar for smaller sizes and 25 bar for larger sizes, the 901 Series delivers dependable performance in both low- and high-pressure systems.

Features

• Full bore design ensures maximum flow efficiency

• Strong forged brass body for high mechanical strength

• Nickel-plated surface improves corrosion resistance

• PTFE sealing system provides leak-free operation

• Designed for both high-pressure and low-pressure systems

• Wide operating temperature range

• Compatible with manual or actuator operation

• Suitable for multiple fluid types including gas and water

• Long service life with minimal maintenance

Technical Specifications

• Model: 901 Series Brass Ball Valve

• Body material: Forged brass with nickel plating

• Valve type: Two-way, full bore

• Sealing material: PTFE seals on ball and stem

• Working pressure:

  • Up to 40 bar (½″ to 1¼″ sizes)

  • Up to 25 bar (1½″ to 3″ sizes)

• Operating temperature: -20°C to +130°C

• Connection type: Threaded ends

• Mounting standard: ISO actuator mounting options (depending on size)

• Suitable media: Hot water, cold water, air, oil, gas, and non-aggressive fluids
