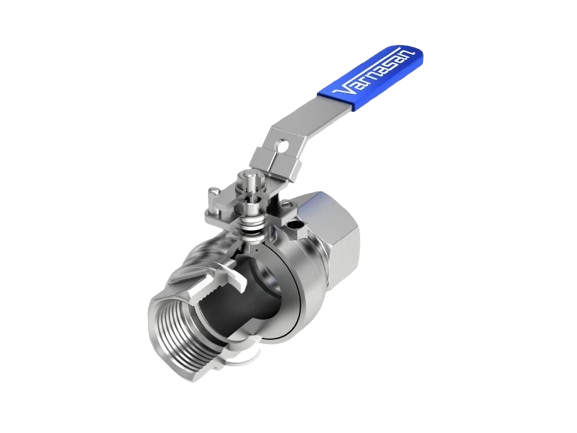

2-Piece Threaded Stainless Steel Ball Valve

The 2-Piece Threaded Stainless Steel Ball Valve is a durable and high-performance industrial valve designed for reliable on/off flow control in demanding fluid handling systems. Manufactured from premium AISI 304 or AISI 316 stainless steel, it offers excellent resistance to corrosion, pressure, and temperature variations.

Its two-piece body design allows easier maintenance and servicing, while the threaded (BSP/DIN) connection ensures quick and secure installation without welding or flanges. Featuring a full bore design, the valve minimizes pressure loss and ensures smooth fluid flow.

This ball valve is suitable for use in chemical processing, food and beverage production, pharmaceutical systems, plastics manufacturing, water treatment, and general industrial applications where reliability and long service life are essential.

Features

• High-grade stainless steel construction for long service life

• Excellent corrosion and chemical resistance

• Two-piece body for easier maintenance and cleaning

• Threaded connection for fast and secure installation

• Full bore design for minimal pressure drop

• Wide operating temperature range

• High pressure rating suitable for industrial applications

• Reliable sealing with reinforced PTFE seats

• Suitable for liquids, gases, and aggressive media

Technical Specifications

• Valve Type: Ball Valve

• Body Design: 2-Piece

• Connection Type: Threaded (BSP / DIN standard)

• Body Material: AISI 304 or AISI 316 Stainless Steel

• Ball Material: AISI 304 or AISI 316 Stainless Steel

• Stem Material: AISI 304 or AISI 316 Stainless Steel

• Seat Material: Reinforced PTFE (R-PTFE)

• Pressure Rating: PN63 (63 bar)

• Operating Temperature Range: −50°C to +210°C

• Size Range: 1/4″ to 4″

• Bore Type: Full Bore

• Operation: Manual (Lever Handle)
